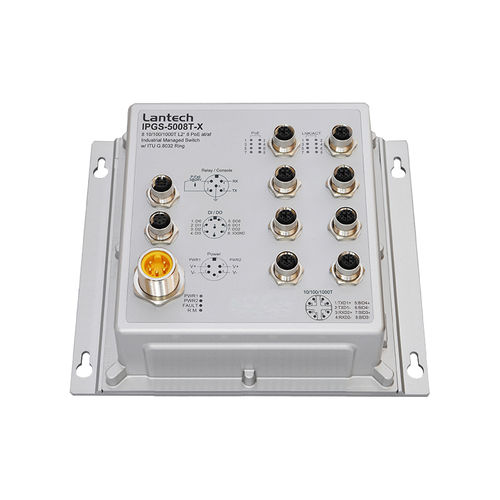

Managed ethernet switch IPGS-5008T series
10 portsgigabit Ethernetwith housing

managed ethernet switch
managed ethernet switch
managed ethernet switch
Add to favorites
Compare this product


Characteristics

Type
managed
Number of ports
10 ports
Network
gigabit Ethernet
Mounting
wall, built-in, with housing
Other characteristics
PoE, compact, EN50155, PTP, waterproof, IP67
Applications
industrial, for railway applications

Description

8 10/100/1000T X-coded EN50155 L2+ 8 PoE at/af Managed Ethernet Switch w/ Enhanced G.8032 Ring EN50155/61373/45545-2 verification; 16.8~137.5V(WVI) or 12~56VDC(24V) input selection Built-in IEC 61375-3-4 ECN (Ethernet Consist Network) to work with IEC61375-2-5 ETBN IEEE802.3at/af up to 30W per port; PoE budget up to 80W PoE management incl. detection and scheduling Galvanic isolation between input, PoE and output as well as case(WVI model) Enhanced G.8032 ring protection < 20ms for single ring. Supports auto mode, enhanced mode, train mode, multi-VLAN and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 16MSTI /RSTP ; support MRP Ring IP67 / IP54 Aluminum housing for best heat dissipation and preventing moist ingress Environmental Monitoring for temp., input voltage, current and total PoE load Miss-wiring avoidance & node failure protection User friendly UI, including auto topology drawing; Complete CLI Support LACP link aggregation, IGMP v3/router port, MLD snooping, DHCP server & DHCP Option82; DHCP Snooping, Port based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH v2/SSL, HTTPS, INGRESS/EGRESS ACL L2/L3,TACACS+**, QinQ Protocol based VLAN ; IPv4 Subnet based VLAN N-key configurator** for upgrading, auto back up /editable restoration without computer
