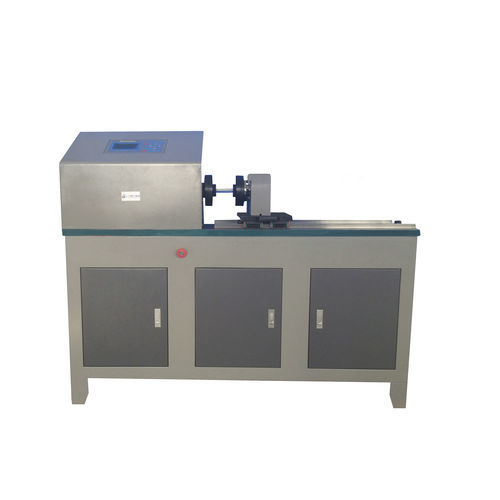

Torsion testing machine TD12XX series

manualmaterialsdigital

The test machine is doing reverse test of materials by reversing deformation in two directions. It can choose to record the angle of 9 points freely during the test process and can inquiries and print the test results after the test. Model - TD1250 Maximum torque of test(N.m) - 500 Relative error of torque - ≤±1% Range of torsion angle measure - 0～9999.9° Relative error of torsion angle - ≤±1% Display of torsion angle - Minimum resolution 0.1° Display of torque - Minimum resolution 0.1N.m Samples dimension - φ6-9mm ，φ9-13mm two sets grips Maximum distance between two collets(mm) - 500 Range of reverse speed - 0～720°/min，Variable speed Precision of speed - ±1% Direction of test rotation - Bidirectional Power supply - 220V±10%, 50Hz Dimension and Weight: - 1500x520x1050mm 240kg
