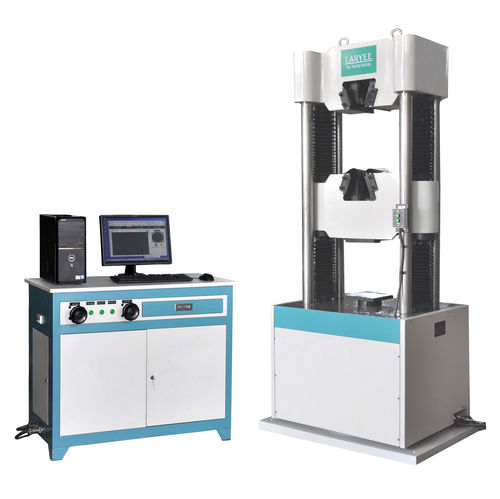

Universal testing machine UH53XX

compressionbendingshearing

Applications: This series machines are widely used for tension, compression, bending and shearing test of metal materials and also used for compression and bending test of nonmetal materials, such as cement, concrete and so on. They are perfect testing instrument project quality testing section, universities and colleges, research institution and industrial and mining enterprise. The machine is calibrated according to ASTM E4 and ISO7500-1. It can do many different kinds of test according to according to ISO6892, ISO7438, ASTM A370, ASTM E8 and BS EN standards. Features: Host machine adopt oil cylinder on bottom type structure, hydraulic load, hydraulic clamping specimen, tensile jaws fixed on cross beam, easily controlling of install and release sample； Manually hydraulic valves loading control, rotate hand wheel implementation force loading and unloading.The controller is external type and can connected to the computer with USB; N, KN, lbf, gf, kgf can be converted at will; Test process, result display, result analysis, result print, all the function can be controlled by the computer, testing data and curve can real-time display during test; Various testing curves, Load-Time, Extension-Time, Stress-Strain, Load- Extension, etc. Can zoom and analysis at any point in the curve； Automatically calculate tensile strength, yield strength, modulus of elasticity, Rp0.2, Rt0.5； The same group sample can continuous testing, and can be analyzed separately for each test results； Have “Stop while destroy” function, can automatic stop working when specimen is broken；.
