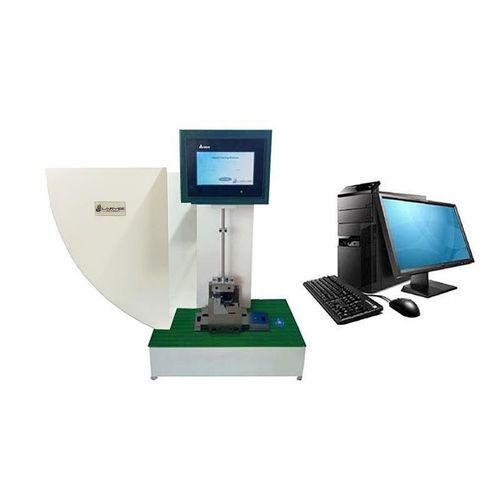

Charpy testing pendulum impact tester CIT2350

computer-controlled

Product Details: The pendulum impact measurement and control system is based on the development and design of the microcontroller of the second generation ARM Cortex-M4 core. It has a 32-bit microprocessor with high performance and low power consumption. Its operating frequency is up to 120 MHz, and it features large capacity flash memory, large capacity SRAM, rich IO port resources, and other peripheral components. The highly integrated measurement and control system offers better real-time performance, faster speed, and higher stability. According to the law of conservation of energy, the system uses a pendulum structure to convert potential energy into kinetic energy, impacting the fixed sample at a certain speed and obtaining the impact absorption energy of the sample. It is mainly used to determine the impact toughness of non-metallic materials such as hard thermoplastic molding, extrusion materials, hard thermosetting molding materials, and fiber-reinforced thermosetting and thermoplastic composites. Complies with ISO179 and ISO9854 test standards. Features: - The intelligent assistant has powerful functions to assist the intelligent hanging hammer and dropping hammer to prevent the hammer rod from bending due to impact. - Angle resolution: 0.05° (2000p). - Can test 10 samples continuously. - Optional sample size measurement system, without repeated input, improves efficiency and calculates impact strength more accurately. Software: Specification: - Model: CIT2350 - Impact energy (J): 7.5, 15, 25, 50 - Energy accuracy: 0.5% - Impact speed (m/s): 3.8 - Pendulum moment: Pd7.5=4.0192 Nm / Pd15=8.0385 Nm / Pd25=13.397 Nm / Pd50=26.795 Nm - Reading resolution: 0.01 J - Raising angle: 150° - Sample support span (mm): 40, 62, 70 - Impact center distance: 395 mm - Dimension: 650 x 500 x 1500 mm - Weight (kg): 150 kg
