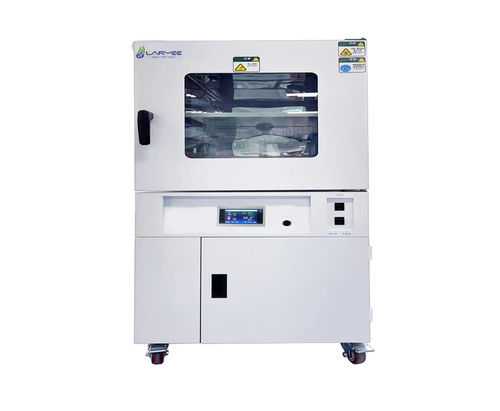

Cabinet oven LY-6090VCdryingelectricvacuum
Add to favorites
Compare this product
Characteristics
- Configuration
- cabinet
- Function
- drying
- Heat source
- electric
- Atmosphere
- vacuum
- Other characteristics
- stainless steel, digital, programmable
- Maximum temperature
200 °C
(392 °F)- Capacity
90 l
(23.78 gal)- Width
61 cm
(24.02 in)- Height
146 cm
(57.48 in)- Depth
68 cm
(26.77 in)
Description
Features
Specifications
Technical specifications
- Resistance-type silicon-tube pressure sensor; vacuum degree adjustable from 100 Pa to atmospheric pressure.
- Vacuum sensor provides direct vacuum measurement with stable performance.
- Power supply: AC 220V ±10% 50Hz. Operating ambient temperature: +5 ~ 35°C.
- Temperature stability (fluctuation): ±1°C. Temperature resolution/accuracy: 0.1°C.
- Optional vacuum data storage and printing functions available.
Specifications
- Temperature range: RT+10 ~ 200°C.
- Temperature fluctuation: ±1°C.
- Temperature resolution / accuracy: 0.1°C.
- Controller: Touchscreen controller with data storage.
- Vacuum pump: Standard supply.
- Indicated vacuum degree: 133 Pa (pointer display).
- Operating ambient temperature: +5 ~ 35°C.
- Power supply: AC 220V ±10% 50Hz.
- Maximum power: 1.1 kW.
- Capacity: 90 L.
- Internal dimensions (W×D×H): 450 × 450 × 450 mm.
- External dimensions (W×D×H): 610 × 680 × 1460 mm.
- Shelves (standard): 2 (independent temperature control).
- Internal material: Mirror stainless steel (1Cr18Ni9Ti).
Technical specifications
- Model: LY-6090VC.
- Capacity: 90 L; interior: 450 × 450 × 450 mm; exterior: 610 × 680 × 1460 mm.
- Temperature range: RT+10 to 200°C; resolution 0.1°C; fluctuation ±1°C.
- Vacuum capability: adjustable down to 100 Pa; indicated vacuum 133 Pa (pointer display).
- Controller: Touchscreen with data storage; optional vacuum data printing/storage.
- Power: AC 220V ±10% 50Hz; maximum power 1.1 kW.
- Construction: Interior mirror stainless steel (1Cr18Ni9Ti); standard 2 shelves with independent temperature control.
