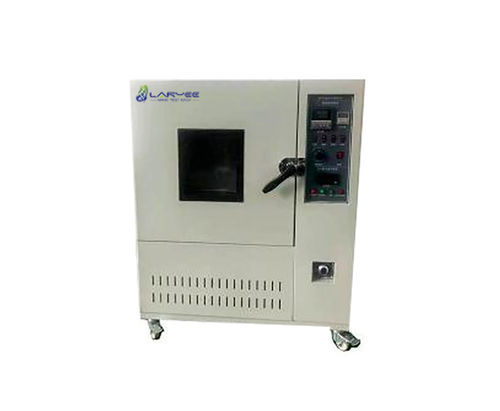

Chamber oven LYH-50

trialfor mechanical testselectric

Application
This oven is designed to evaluate thermal behaviour and pre/post-heating characteristics of wire and cable insulations and coated rubber specimens. Suitable for testing wire, leather, plastics, rubber, textiles and similar materials. The unit integrates precision air-exchange adjustment, digital voltmeter, ammeter, watt-hour meter and timer for measurement and control of air replacement rate. Horizontal forced-air circulation and adjustable side airflow plates ensure uniform and stable chamber temperature. Complies with UL1581, ASTM-D2436, CNS3556, CNS742, JIS7212, JISB7757, ASTM 5423 and ASTM 5374.

Specification

• Model: LYH-50
• Inner size: 50 cm (D) × 45 cm (W) × 50 cm (H)
• External size: 126 cm (L) × 65 cm (W) × 129 cm (H)
• Box structure: outer electrostatic paint baking steel plate; thermal insulation layer high-density rock wool; high-temperature resistant electrolytic plate; air exchange and heating pipe layer; inner stainless steel plate
• Inner material: SUS #304 stainless steel
• Outer material: baking paint finish
• Insulation material: high-density rock wool
• Temperature range: ambient +10 °C to 300 °C
• Temperature control accuracy: ±0.5 °C
• Temperature resolution: 0.1 °C
• Temperature distribution error: ±2.5 °C
• Heating time: ~40 minutes from room temperature to 300 °C
• Air exchange rate: adjustable 5–300 times/hour (measured at 80 °C)
• Rotary disk: detachable; rotation speed 8–10 rpm
• Air supply and circulation: multi-wing centrifugal circulating fan
• Circuit control system: microcomputer PID temperature controller with digital display and automatic tuning
• Motors: two (made in Taiwan)
• Heater: spiral tube heater, 380V, 6.0 kW
• Service conditions: ambient temperature 5–35 °C; ambient humidity ≤85% R.H.
• Power supply: AC 380V three-phase four-wire
• Power: 6.0 kW

Technical characteristics

• Model name: LYH-50
• Test chamber inner dimensions: 50 × 45 × 50 cm
• Temperature range up to 300 °C; control accuracy ±0.5 °C; resolution 0.1 °C; distribution error ±2.5 °C
• Adjustable air exchange rate: 5–300 times/hour (measured at 80 °C)
• Heating: spiral tube heater 6.0 kW; power supply AC 380V three-phase
• Circulation: horizontal forced air with multi-wing centrifugal fan; detachable rotary disk (8–10 rpm)
• Construction: SUS #304 inner, baking paint outer, high-density rock wool insulation
