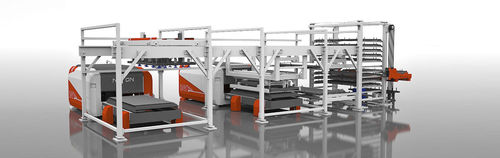

Pallet loading and unloading system Expert Lift

sheetfor cutting applicationshandling

• Loading and unloading is done automatically on your machine with Expert Lift Compact. • It provides the solution for more machines. • Sheets which are separated by vacuum suction cups is transferred to the pallet exchange table • It allows to produce without requiring operator intervention • Vibrating system is used to separate the sheet which are stuck together. • The machine Works with loading-unloading system to increase the capacitiy utilization. • It minimizes space requirements with compact design. • Expert Lift Compact can be installed both side of Nukon lasers according to request. • It provides the exact solution of single sheet detection with sheeting magnet and double-plate control system. • We use high quality pads Germany Schmalz brand which has double suction for vacuuming. • Available sheet length : • 3000 mm • 4000 mm • Available sheet width : 1500 mm : 2000 mm • Min sheet size for loading-unloading : 750 x 750 mm : 750 x 750 mm • Carrying capacity of loading pallet : 3000 kg : 3000 kg • Min-Max sheet thickness : 0,5-25 mm : 0,5-20 mm • Max sheet weight : 900 kg : 1200 kg • Quantity of vacuum : ø160 / 16 pcs. : ø160 / 20 pcs. • Max horizontal travelling speed : 12 m/min : 12 m/min • Max vertical travelling speed • 12 m/min : 12 m/min
