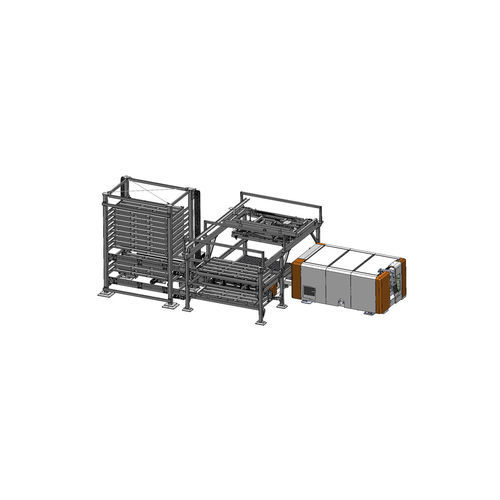

Automatic storage tower 315

verticalcompactfor sheet metal

• Tower System provides excellent solution for continuous production by combining automated pallet change with compact storage technique • More efficient operation is provided owning to automated operation. • Getting high quality owning to transport of sheet without scratching and deforming. • Non-stop cutting is continued. • Integration of the processing machine • Modular structure that can grow according to the request • Lower costs due to the compact lay-out • %75 saving time of loading-unloading • Fast, safety , easy usage • Cost of low purchase • Available sheet length : 3000 mm : 4000 mm • Available sheet width : 1500 mm : 2000 mm • Min. sheet size for loading-unloading : 750 x 750 mm : 750 x 750 mm • Carrying capacity of each loading pallet : 3000 kg : 3000 kg • Max pallet height : 180 mm (Al) : 180 mm (Al) • Number of pallets : 10 pcs. : 10 pcs. • Max horizontal travelling speed : 12 m/min : 12 m/min • Max vertical travelling speed • 12 m/min • 12 m/min • Tower lift speed : 18 m/min : 18 m/min • Tower pallet pulling speed : 32 m/min • 32 m/min
