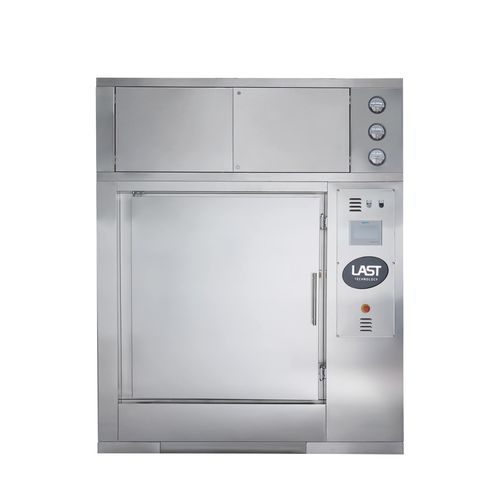

Hot air dryer TD

laboratory

The TD tray dryers have been designed to dry – by means of hot air – solid materials, powders and granulates. The drying process takes place by means of maintaining the hot air at a temperature between 70 and 150°C for a controlled period of time. Predefined and “custom” programmes for every need. The equipment process is developed by our Automation Department, according to the current regulations/standards and the type of product being dried. The TD tray dryers have been designed to withstand a drying temperature of up to 150°C. The system also ensures optimum heat distribution (temperature deviation below ± 2°C) during the entire cycle (heating, drying and cooling phases). LAST verifies and guarantees these performances during the equipment’s FAT, by mapping both the chamber and product temperatures (especially during the drying phase as this is the most critical, due to the expansion and retraction of the filter containers). • Quadrangular or rectangular chamber and hatches (doors). • Fully welded one-piece chamber with rounded corners to ensure excellent hygiene levels and facilitate internal surface cleaning. • The mechanical construction is resistant to temperatures above 350°C. • The air is uniformly distributed inside the chamber by means of adjustable deflectors. • The inlet and expulsion air handling units (heating, cooling and filtration) are located at the top of the drying chamber. • The integrated chamber interior washing system (CIP) and the ATEX version of the equipment are offered as optional extras. • The chamber is positioned on a tubular-type base to evenly distribute the weight on the floor.
