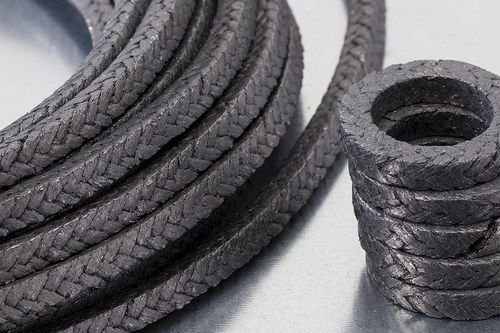

Braided graphite packing LATTYgraf 6995 NG

carbonInconel wirefor valves

INDUSTRIAL VALVES : A NEW A GENERATION OF PACKINGS AGAINST FUGITIVE EMISSIONS Packing made from high-purity expanded graphite yarns (>99.5%) coated with Inconel wire, impregnated with a high-purity graphite mix (>99.5%) and incorporating an additional agent to improve friction coefficient. LATTYgraf 6995 NG contains an inhibitor developed from an exclusive process to provide unlimited protection of the stem, stuffing box housing and stuffing box from corrosion over time. Limitations: precautions to be observed when used in oxidizing environments. Limitation: precautions in oxydising environment Available in preformed packing rings, on request. Very high-performance, low-friction, very-pure expanded graphite packing. Extremely resistant to very high pressures. Fluids : For all fluids Material : Fugitive emission valves and fittings: refineries, heat transfer fluids, energy production and all high-temperature fluids Parameters Speed : < 1 m/s pH : 0 - 14
