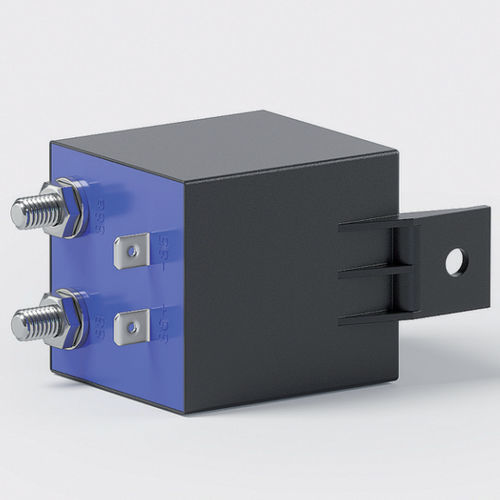

12VDC electromechanical relay 520080 series

24VDCpower

The relay cube from Layheris the simple answer to battery management. High performance in a minimum ofspace: The new Power Relay520 with microprocessor from Layher is ideally suited to ail applications that are operated with multiple batteries. With its high load-bearing capacity (80 ampere at 24 V) and its waterproof and dirtproofcompact cube form it bas a wide range ofpotential applications - on the truck tailgate and in vehicles for handicapped persons, in the service vehicles ofthe police and other emergency services, in shipping and in the field ofrenewable energies. The Power Relay520is the right choice wherever two or more batteries are used forsafety reasons. The Power Relay520handles battery management during charging with the utmostreliability: When a preset voltage level is reached, the relay connects the batteries in parailel and separates them when the voltage drops below the set value due to discharge. The avoidance of voltage losses makes the Power Relay520 a real alternative to isolation diodes or FET charge current distributors - the charge voltage does not have to be increased.
