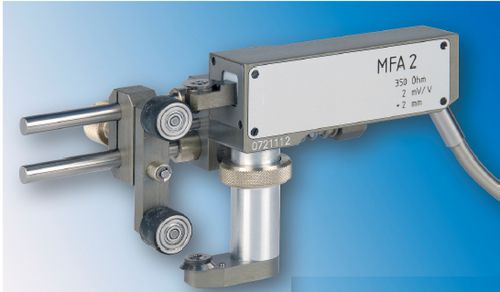

Strain gauge extensometer MFA 2

lineartensile

The MFA2 linear strain gauge is suitable for virtually all tests above an initial instrument measuring length (Le) of 25 mm. EXTENSOMETER max stroke 2 mmThe MFA2 linear strain gauge is suitable for virtuallyall tests above an initial instrument measuringlength (Le) of 25 mm. Its measuring accuracyexceeds all requirements set down by standard ENISO 9513. Its design, which has been tried andtested over many years of use, guarantees a highlevel of reliability and a long service life, even underdifficult operating conditions. The MFA is particularlysuitable for determining the module of elasticity,proof stress and ultimate strain. The MFA is fast,straight forward and easy to use, and thereforeenables large numbers of tests to be carried out. Technical data Accuracy class EN ISO 9513: 0.2 Measuring principle Strain gauge full bridge Measuring path for tensile test: 2 mm Standard initial length Le: 30 (25)** and 50 mm Measuring path for pressure test to be agreed Indication error * 0.2 % Indication error * 0.6 µm Error in initial measuring instrument length < 50 µm Sensitivity 2 mV/V Rated resistance of bridge 350 Ohm Max. voltage input 10 V Actuation force 10 - 60 cN Cable length 5 m Weight: 190 g * The greater value is permissible ** By turning the blades through 180 degrees Standard using for sample type : Circular 0 to 30 mm Flat 0 to 30 x 30 mm **For samples with dimensions up to 60 mm
