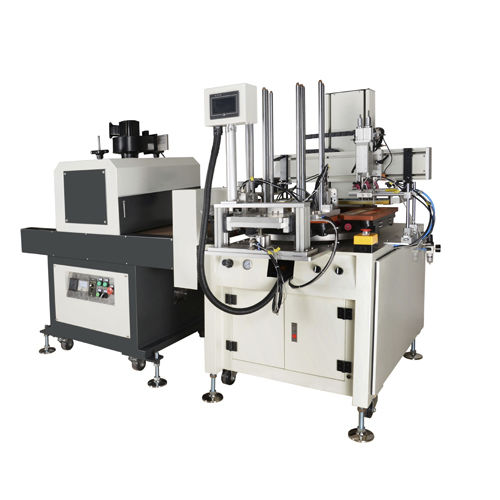

Automatic screen printer HSP-2030

monochromefor rulersflat bed

Automatic Stationery Ruler Screen Printing Machine Technical Parameters Model No.: HSP-2030 Max.Printing Size:200*300mm Power: 220V 50-60Mhz 1kw Air Pressure: 5-7 bar Printing Speed: 2800pcs/hr Workstation: 4pcs Weight: 430kgs Printing Color: One Color Automatic Grade: Full-automatic Warranty : Two years Usage: Scale ruler, triangle ruler, scaler, stationery ruler Machine Feature This machine is a high speed and precise automatic ruler Screen Printing Machine,the printing precision can be up to <0.05mm,using Taiwan mechanical cam divider copmose high speed rotarytable,which have no shack when printing,installing auto-baiting and drying system to improve the printing quality. It's suitable for printing triangular rulers, straight rulers with 350mm or below. Machine Advantage 1.With mirocomputer-controller, semi-automatic, utility function, and the operating procedures are flexible and reliable. 2.With function of leveling ink by sliding automatically on front /back, avoiding printing ink partial solidification 3.With aluminum alloy structure frame and metal coating surface, the machine is easy to move but steady 4.Manual feeding, auto-baiting by manipulator with vacuum pad, and auto UV drying 5.Automatic ruler locating system ensures printing accuracy, "no product,no printing" system keeps printing stabely. 6.Using Taiwan LSK guide rail with self direction, making sure high precision 7.Vacuum equipment ensures the ruler to be in the same position during transmission 8.Up&down , left & right are equiped with Taiwan CEC oil pressure buffer to eliminate working shock.
