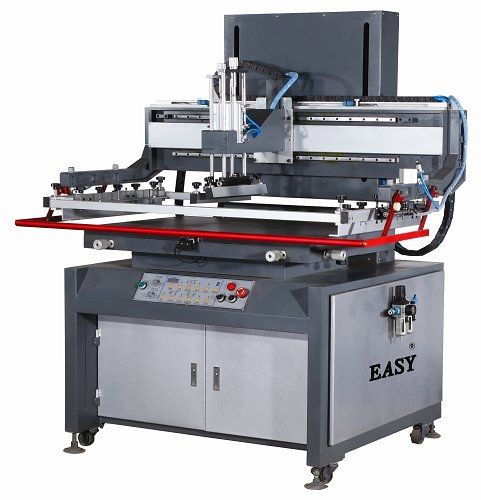

Automatic screen printer NSP-4060

colorflat bed

The flat bed screen in this series is suitable for the printing of wine, gifts, cosmetic packages and even cigarettes, as well as for the printing of trademakerk, wall calendars, computer keyboards, oil panting and even credit cards. The workbench area is of 500 x 700 mm, while the maximum printing area supported is 400 x 600 mm. The printing pressure applied is of 4.0-8.Kgf/C㎡, while the manufacturer guarantees an operation air pressure between 0.3 and 0.5 Mpa. With a source power of 2.3 KW and a rated voltage of 370 V, this item is one of the fastest on the market, printing at a speed of 400 to 600 pieces per hour. There are several important features, such as a printing transmission that adopts a motor drive, along with an up and down of the machine arm which is driven by frequency control, move steady and a motor. The up and down vernier device is very convenient, being safe and reliable to use.
