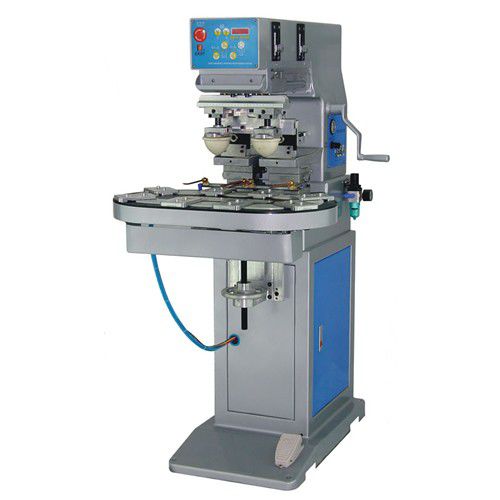

Pad printing machine with closed ink cup S2-250C/8T
for the toy industryfor the electronics industryfor the pharmaceutical industry

pad printing machine with closed ink cup
pad printing machine with closed ink cup
pad printing machine with closed ink cup
pad printing machine with closed ink cup
pad printing machine with closed ink cup
Add to favorites
Compare this product


Characteristics

Type
with closed ink cup
Field
for the toy industry, for the electronics industry, for the pharmaceutical industry, for the cosmetics industry, for the beverage industry
Other characteristics
two-color, rotary, pneumatic, semi-automatic, low-maintenance
Printing speed

Max.: 1,500 p/h

Min.: 0 p/h

Description

Two Color Ink Cup Pad Printing Machine with Conveyor has 8 PCS printing position. It can print 8 PCS products and two colors at one cycle Specifications 1. Controlled by microprocessor, easy operation, running stably and accurately. 2. 4-digit auto counter built-in. 3. Cast aluminum machine frame, low weight and high intensity, turnable machine head. 4. Separate adjustment of the pad up/down stroke speed. 5. ink scraper is auto balance keeping in printing. 6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying. 7. Ink cup is turnable and adjustable in vertical and horizontal direction. 8. Super long slide stroke to print large size workpiece. 9. Speed of every single pneumatic organ is adjustabl Specifications 1. Model No:S2-250C/8T 2. Operation: Pneumatic 3. Printing Colors: 2 4. Max. Printing area: 80x135 mm 5. Plate area: 100*250 mm 6. Sealed ink cup diameter: 60 or 90mm 7. Max printing speed: 1500PCS/H 8. Wattage: 220V/ 50Hz 110V/60Hz 9. Air pressure: 6 Bar 10. Machine size: 92×78×135cm 11. Machine weight: 140kg 12. Packing Size:106*86*151cm 13. Gross Weight:200KG Free Fitting: 1 Two PCS pad steel plate 2. Two PCS silicone rubber pad 3. Eight PCS jig 4. Tooling box 5. Englishi specifications Price Terms --FOB or CFR Payment Terms --T/T or LC Packing --Wooden case Lead Time ---5days after confirm PO Standards Certificate--- CE Cubic Meter--- 1.42 Main Parts SMC CYLINDER MADE BY JAPAN
