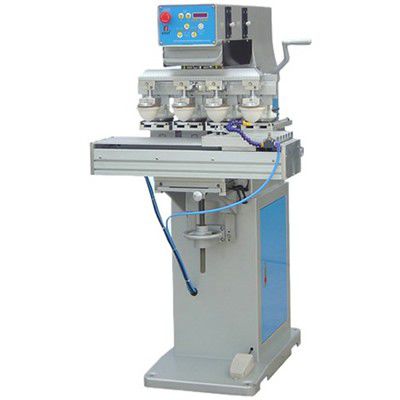

Pad printing machine with closed ink cup S4-250T
for the toy industryfor electronic componentsfor the pharmaceutical industry

pad printing machine with closed ink cup
pad printing machine with closed ink cup
pad printing machine with closed ink cup
pad printing machine with closed ink cup
pad printing machine with closed ink cup
Add to favorites
Compare this product


Characteristics

Type
with closed ink cup
Field
for the toy industry, for electronic components, for the pharmaceutical industry, for the cosmetics industry, for the beverage industry
Other characteristics
four-color
Printing speed

Min.: 0 p/h

Max.: 900 p/h

Description

4 Color Ink Cup Pad Printing Machine Specifications : 1. Model NO:S4-250T 2. Operation: Pneumatic 3. Printing Colors: 4 4. Plate area: 100*250mm 5. Sealed Ink cup: 90 mm 6. Printing area: 80*135mm 7. Conveying Stations jigs: 1 8. Printing speed: 900PCS/H 9. Power Supply: 220V/ 50HZ 110V/60HZ 10. Air pressure:4-6Ba 11. Machine Size:70*75*138cm (with lifted handle)* 12. Net Weight :140KG 13. Packing Size:83*83*150cm........ 14. Gross Weight:185KG Features: 1. Controlled by microprocessor, easy operation, running stably and accurately. 2. 4-digit auto counter built-in. 3. Cast aluminum machine frame, low weight and high intensity, turnable machine head. 4. Separate adjustment of the pad up/down stroke speed. 5. ink scraper is auto balance keeping in printing. 6. With the function of ink scraping nonstop without printing in order to prevent ink from drying. 7. ink cup is turnable and adjustable in vertical and horizontal direction. 8. Super long slide stroke to print large size workpiece. 9. Speed of every single pneumatic organ is adjustable. 10: Japan SMC & Germany Festo Cylinders and all phnumatic Parts for assuring machine's best working stability, humanlize adjustment, longest lift span. Free Fitting: 1. Four pcs steel plate 2. Four pcs rubber pad 3. English operating instruction Price Terms ---FOB or CFR Payment Terms--- T/T or LC Packing ---Wooden Case Lead Time ---5 days after confirm PO Standards Certificate ---CE Cubic Meter--- 1.5 Main Parts SMC CYLINDER (MADE BY JAPAN )
