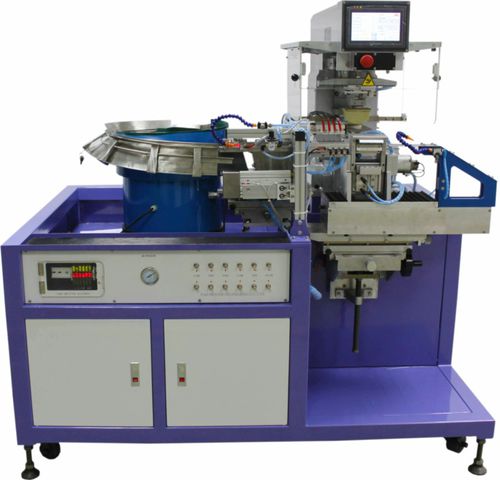

Pad printing machine with closed ink cup EASY-S1GOLF
automatic2-colorfor the toy industry

Pad printing machine with closed ink cup - EASY-S1GOLF - LC Printing Machine Factory Limited - automatic / 2-color / for the toy industry
Pad printing machine with closed ink cup - EASY-S1GOLF - LC Printing Machine Factory Limited - automatic / 2-color / for the toy industry
Add to favorites
Compare this product

Characteristics

Type
with closed ink cup
Control
automatic
Number of colors
2-color
Domain
for the toy industry, for the electronics industry, for the pharmaceutical industry, for the cosmetics industry, for the beverage industry, automatic, for caps, for balls, electrical switch
Other characteristics
electropneumatic, rotary, high-speed, pneumatic
Printing speed

Max.: 1,850 p/h

Min.: 1 p/h

Description

Product name:Golf Tees Fully Automatic Pad Printing Machine Model Number: EASY-S1GOLF Golf Tees Fully Automatic Pad Printing Machine Automatic loading and unloading, PLC controls each function, touch screen operation, simple and convenient. Touch screen features counter, fault alarm information. Reciprocating scraper with oil bottles, ink saving, environmental effect. Printing speed is adjustable to meet different printing requirements. Parameter: Plate Size: 260*100mm Color: 1Color Ink Cup Diameter: Ø90mm Maximum Diameter: Ø80mm Rubber Pad Up and Down Stoke: 80mm Rubber Pad Angle Adjust: Angle360 Working table angle adjust: Angle±5 Maximum Golf Tee Length: 50-90mm Rubber Pad Printing Pressure(N/6bar/hour): 1178N Maximum Speed: 1850PCS/Hr Air pressure: 5-7 Bar Air consumption: 0.82Litre/Circle Power supply: 110/220V±10% Power Rate: 1500W Noise: ＜75 Machine Dimension: 180*115*150CM Machine Weight: 485KG Packing size: 196*131*175cm Gross Weight: 700KG
