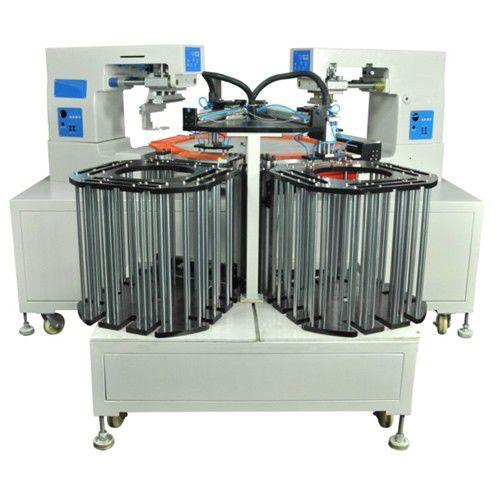

Pad printing machine with closed ink cup ART-100
automatic2-colorfor the toy industry

pad printing machine with closed ink cup
pad printing machine with closed ink cup
Add to favorites
Compare this product

Go to the LC Printing Machine Factory Limited website for more information

Characteristics

Type
with closed ink cup
Control
automatic
Number of colors
2-color
Domain
for the toy industry, for the electronics industry, for the pharmaceutical industry, for the cosmetics industry, for the beverage industry, automatic, for caps, for balls, electrical switch
Other characteristics
electropneumatic, rotary, high-speed, pneumatic
Printing speed

Max.: 1,200 p/h

Min.: 1 p/h

Description

Product name:Automatic Two Color Ruler Pad Printing machine Model Number: ART-100 Automatic Two Color Ruler Pad Printer Printing Color:Two Color Max Printing Diameter:60*300mm Steel Plate Size:100*500mm ink cup Diameter:90mm Power:110/220V 50-60Mhz Air Pressure:5-7Bar Technical Parameter： 1.PLC with touching screen compile programming. 2.Using SMC and TaiWan Pneumatic Parts 3.Printing Speed:1100-1200PCS/Hr,Printing Two PCS at one time. 4.Up/Down store holder system,folding automatically. 5.Transvers ink Cup System,saving ink and thinner. 6.Locating by keeping one side with high vacuum funcation. 7.Auto drying system after printing. 8.No need person to operate. 9.It is suitable for printing two colors on kinds of rulers. 10.Two sealed ink cup system make printing steady 11. Rotary feed preparation system 12. Feeding and downloading by manipulator with vacuum pad 13. Automatic receiving system 14. Conveyer worktable to make ruler ahead
