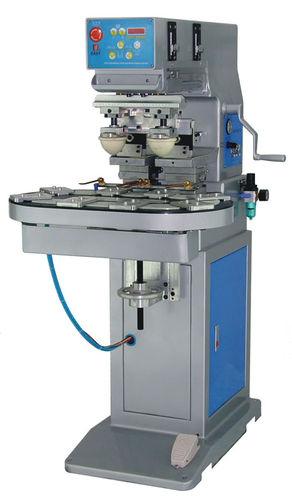

Pad printing machine with open ink cup S2/C

pad printing machine with open ink cup
pad printing machine with open ink cup
Add to favorites
Compare this product


with open ink cup
Printing speed

1,500 p/h


The S2/C has a maximum plate size of 100x150 mm, a maximum printing area of 90x130 mm, a maximum worktable area of 95x150 mm, a maximum product dimension of 120x180mm and a maximum printing speed of 1500 pcs/hr. It uses 2 printable colors. It consumes air at a rate of 166 liter/min (5 bar), weighs 180 kg and has dimensions of 980x820x1,381 mm. The S2/C is totally microcomputer-controlled operation and a built-in auto four-digit counter. It has a robust, coin aluminum construction and features a 2-color, gear-type conveyor with 8 stations. Ink covering is achieved with the ink roller which is simple to remove and clean. Varying printing requirements can be met by the adjustable printing speed. Ink is scraped cleanly and fully by the auto-balanced doctor blade. Speed adjustment and an independent stroke is available for the up/down pad. The device is extremely reliable, so that even if the pad is not lowered, the ink roller will keep working. Thicker ink is produced by double inking plus single printing. It has a freely adjustable ink tray base allowing easy overprinting. It comes with an auto-air dry option as well.
