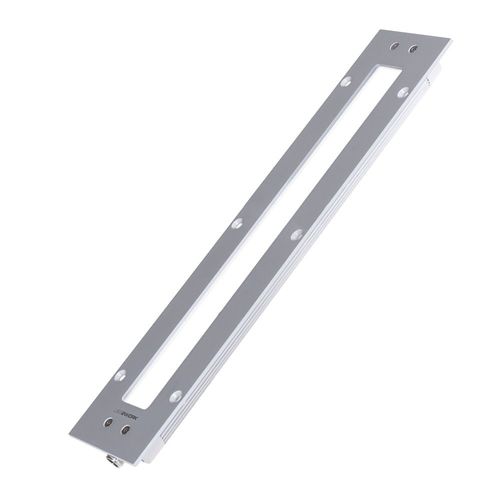

Light fixture TUBELED_40 II

LEDIP69Koil-resistant

LED machine luminaire TUBELED_40 II integrated, recessed luminaire, luminous flux-optimised power version, daylight white, 745 mm x 74 mm cover and only 3 mm flat, IP 67/IP69K, oil-resistant, chip-proof, suitable for CNC Reinstalled version of the proven TUBELED_40 II machine luminaire: oil-resistant and resistant to coolants and lubricants, high temperature resistance, chip-proof tempered glass and the associated high degree of protection make the luminous flux-optimised luminaire the first choice for illuminating working areas in machines. The luminous flux-optimised luminaire is the first choice for illuminating working areas in machines. For recessed shafts for original equipment or retrofitting. Lamp luminous flux: - 3797 lm Lamp luminous efficiency: - ~155 lm/W Light distribution: - Light Forming Technolology Light colour: - Daylight white (5200 - 5700K) Connected load: - 24V DC ± 10% Connection (connector): - M12 A-coded Class of protection: - III Glare control: - diffused safety glass Beam angle (optics): - 100° Operating temperature: - -30 °C - +60 °C (-22 °F - 140 °F) Colour rendering (Ra): - >85 Lamps lifetime: - > 100,000 h (L80/B10) Cover material: - tempered glass, 4 mm (0,16“) Height [B] x Width [C]: - 32 mm x 74 mm (~1.26" x ~2.91"), aperture 3 mm (~0.12") built-up Length [A]: - 745 mm (~29,33“) Weight (net): - 1200 g (~42 oz) Gross weight: - 1600 g (~56 oz) Risk group (DIN EN 62471): - free group Markings: - CE, UKCA, ETL Listed (5003529), D mark Dimmable: - optional via accessories Made in: - Germany
