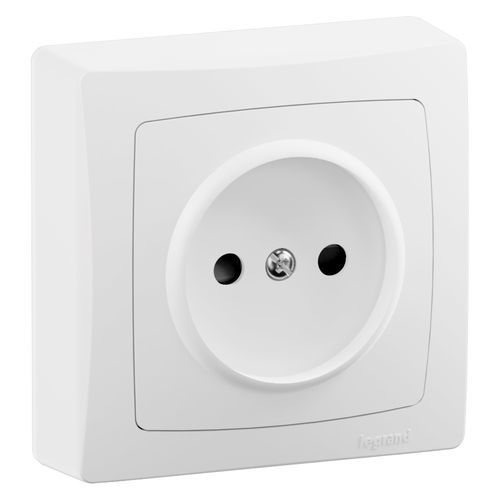

Wall-mounted electrical socket 086022L

impact-resistantthermoplastic moldedIP20

Description
Surface-mounted non-earthed power socket designed to replace defective non-earthed outlets and to supply small electrical appliances (bedside lamp, floor lamp, etc.). Suitable for renovation and retrofit installations.

Product features

• Surface-mounted complete unit — mechanisms protected against direct contact (IP20) — 250 V~ — delivered with open terminals — finish: white RAL 9003
• Automatic (push-in) terminals
• Child-safety shutter (eclips protection)
• Single socket, 2 active contacts (round)
• Thermoplastic material, halogen-free, glossy finish
• Rated current 16A — Rated voltage 250V — Frequency 50–60 Hz
• Compact dimensions: 72 x 72 x 28 mm; IK04

Range information
The surface-mounted range is ideal for renovation and offers both modular and complete mechanisms. White finish integrates easily on most walls. The range includes essential home functions: switches (rocker, push-button, dimmer), ventilation and roller-shutter controls, power sockets, telephone, TV and data sockets, junction boxes and cable outlets. Frames and accessories allow mounting on DLPlus mouldings or along mouldings to add sockets or controls.

Technical specifications

• Model: Other
• Neutral pole switched simultaneously: No
• Type of protective contact: None
• Number of active contacts (round): 2
• Composition: Complete mechanism with frame
• Equipped with supplementary indicator lamp: No
• Number of sockets: 1
• Sockets with separated phases: No
• Number of modules (modular construction): 2
• Number of phases: 1
• Impression/marking: None
• Connection type: Automatic terminal
• With protective flap: No
• With child protection shutter: Yes
• Color: White
• RAL number (equivalent): 9003
• Metallic finish: No
• Transparent: No
• Lockable: No
• Ejection mechanism: No
• Isolated embedding: No
• Functional lighting: No
• Orientation lighting: No
• Surge protection: No
• Residual-current protection: No
• With microfuse: No
• Special supply: None
• Mounting mode: Surface-mounted
• Fixing type: Fixing with screws
• Material: Plastic
• Material quality: Thermoplastic
• Halogen-free: Yes
• Surface treatment: Untreated
• Surface finish: Glossy
• Antimicrobial treatment: No
• Rewiring possible: Yes
• With on/off device: No
• Inclined or tilting socket: No
• Nominal current: 16A
• Nominal voltage: 250V
• Frequency (Min-Max): 50-60Hz
• IP rating: IP20
• Impact resistance (IK): IK04
• Width: 72 mm
• Height: 72 mm
• Depth: 28 mm
• Compatible with Apple HomeKit: No
• Compatible with Amazon Alexa: No
• Compatible with Google Assistant: No
• Compatible with IFTTT: No
• With Wi‑Fi repeater: No
• With integrated Bluetooth speaker: No
• For "harsh conditions" (according to VDE): No
• Compliant with UK Building Regulations (part M): No
• Operating temperature (Min-Max): -5 - 40°C
• Storage temperature (Min-Max): -5 - 40°C
• Voltage type: AC
• Power supply: None
• Nature of cable for connection: Flexible or rigid
• Cable section (Min-Max): 1.5-2.5 mm²
• Cable retention: Not applicable
• Connected object: No
• Control method: Not applicable
• Voice controllable: No
• Programmable: No
• Protocol interoperability: No
• Connectable via internet box: No
• EAN/Barcode: 3414972654500
