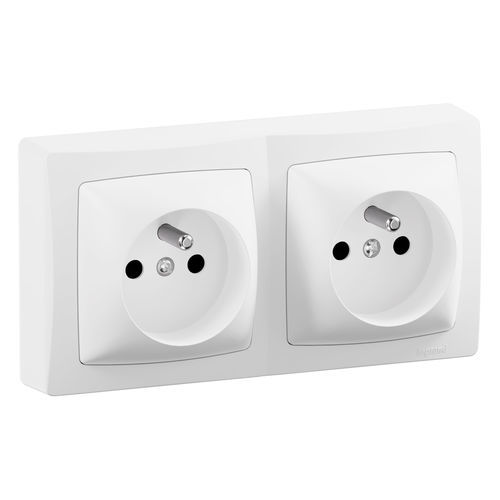

Wall-mounted electrical socket 086076L

IP20halogen-freewith earthing contact

Description
Surface-mounted double power socket with protective earth. Complete mechanism delivered ready-to-install for renovation and surface electrical installations. Compact dimensions and white RAL 9003 finish for easy integration on walls.

Key features

• Surface-mounted complete device with IP2X-protected mechanisms — 250 V~ — terminals supplied open
• 2 gangs (2 outlets) — nominal current 16 A, nominal voltage 250 V
• White finish RAL 9003, thermoplastic material, glossy surface
• Child protection shutter, automatic terminal connection, mounting with screws

Applications
Suitable for residential and light commercial surface installations, renovation projects and retrofit works. Compatible with mouldings and plinth systems (DLPlus) to add sockets or controls along skirtings and trunking. Designed for installers and electricians requiring a modular surface solution.

Technical specifications

• Model: protective contact pin type
• Simultaneous neutral pole disconnection: No
• Type of protective contact: Round
• Number of active (round) contacts: 4
• Composition: complete mechanism with frame
• Indicator light: No
• Number of sockets: 2
• Number of modules (modular construction): 4
• Number of phases: 1
• Marking/printing: None
• Connection type: Automatic terminal
• Protective cover: No
• Child protection (shutter): Yes
• Text area/inscription surface: No
• Colour: White
• RAL number (equivalent): 9003
• Metallic finish: No
• Transparent: No
• Lockable: No
• Ejection mechanism: No
• Insulated recess: No
• Functional lighting: No
• Orientation lighting: No
• Surge protection: No
• Residual-current protection: No
• With microfuse: No
• Special power supply: None
• Mounting mode: Surface-mounted
• Fixing type: Screw fixing
• Material: Plastic (thermoplastic)
• Material quality: Thermoplastic
• Halogen-free: Yes
• Surface treatment: Untreated
• Surface finish: Glossy
• Antimicrobial treatment: No
• Rewiring possible: Yes
• On/off device: No
• Tiltable socket: No
• Rated current: 16A
• Rated voltage: 250V
• Frequency (Min-Max): 50–60Hz
• Ingress protection: IP20
• Impact resistance (IK): IK04
• Device width: 136mm
• Device height: 72mm
• Device depth: 36mm
• Compatible with smart home assistants: No
• Suitable for harsh conditions (VDE): No
• Installation/operating temperature (Min-Max): -5–40°C
• Storage temperature (Min-Max): -5–40°C
• Voltage type: AC
• Power supply: None
• Cable type for connection: Flexible or rigid
• Cable cross-section (Min-Max): 1.5–2.5 mm²
• Cable retention: Not applicable
• Connected object: No
• Control method: Not applicable
• Voice control: No
• Programmable: No
• Interoperability protocol: No
• Connectable via internet box: No
• With Wi‑Fi repeater: No
• With integrated Bluetooth speaker: No
• For 'difficult conditions' (VDE): No
• UK Building Regulations (part M) compliant: No
• EAN/Barcode: 3414972654746
