Wall-mounted electrical socket Mosaic

impact-resistantreinforcedIP40

Description

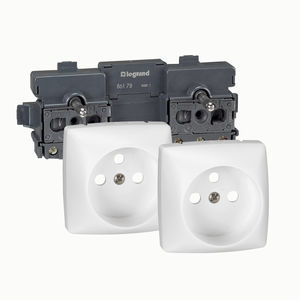

Mosaic Soluclip socket designed for clip-on trunking offering aesthetic integration and simplified maintenance. Retractable surface base with anti-insertion feature, 16A 230V, with integrated Soluclip accessory for mounting in clip-on trunking. Connections via automatic lever terminals for quick tool-free wiring.

Product features

• Mosaic Soluclip 2P+T surface anti-insertion socket 16A 230V with integrated Soluclip accessory
• Designed for mounting in clip-on trunking
• Socket with bilateral connection for direct clip-on mounting
• 4 modules (modular construction)
• Automatic lever terminals allowing quick tool-free connection
• Impact resistance (product note): reinforced

Benefits

• Surface technology: retractable base combines flush design, safety (socket recess not accessible) and cleanliness (prevents dust accumulation)
• Mosaic Link components allow easy reconfiguration of installations and reduce maintenance costs
• Intuitive assembly of sockets with connection accessory to evolve installations
• Compatibility with Legrand mounting supports for a smooth aesthetic finish flush with the support

Installation highlights

• Mosaic Link technology for flexibility: possibility to add Mosaic Link sockets with connection accessory (associated product reference indicated on the website)

Usage highlights

• Integrated Soluclip accessory providing anti-slip and anti-pull-out protection of the device
• Improved protection against insertion of thin tools

Recommendations / usage restrictions

• Indoor use only

Range information
Mosaic is a range of residential and commercial devices in 45 x 45 mm format, modular from 1 module, suitable for many supports (wall, column, floor box, trunking). Available in several finishes and integrating innovations (Mosaic Easy-Led, Mosaic Link) to simplify installation and offer scalable functions.

Technical characteristics / specifications

• Number of sockets: 2
• Number of modules (modular construction): 4
• Rated current: 16A
• Rated voltage: 230V
• Frequency: 50-60Hz
• Connection type: Automatic terminal (lever)
• With child protection device: Yes
• Mounting method: Trunking (clip-on)
• Fixing type: Clip-on fixing
• Material: Plastic (thermoplastic)
• Halogen-free: Yes
• Surface finish: Glossy
• Color: Red (RAL 3020 equivalent)
• Device width: 139.5 mm
• Device height: 47 mm
• Device depth: 43 mm
• Recessed depth: 31 mm
• Protection index IP: IP40
• Impact resistance (IK): IK04 (product sheet also mentions reinforced impact resistance in presentation)
• Compatible cable section: 2.5 mm²
• Operating/installation temperature: -5 to 35°C
• Storage temperature: -10 to 70°C
• Connected object: No
• EAN / Gencode: 3414971576148
