Wall-mounted electrical socket PWAK3110WH

built-inIP20halogen-free

Summary

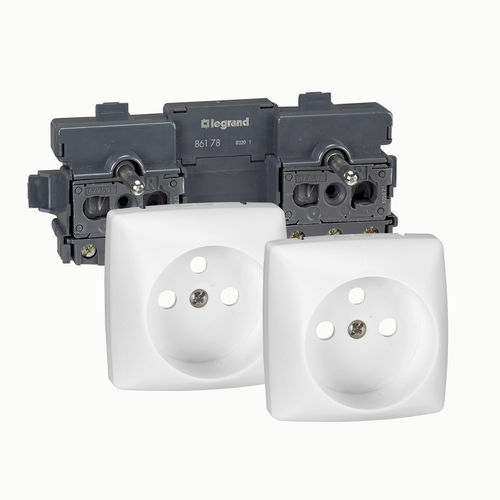

Modular double electrical socket 2P+T, pre-wired, 16A 250 V~, white (RAL 9003), for surface or flush installation.

Product features

• Mechanisms protected against direct contact (IP2X)
• White finish RAL 9003
• Delivered with open terminals
• Pre-wired, terminal capacity 1.5–2.5 mm²
• Rated current 16 A, rated voltage 250 V~

Installation benefits
Modular product suitable for surface (saillie) or flush (encastré) mounting. Fixing by screws and compatible with loop-through wiring for distribution on site.

Usage recommendations / restrictions

• Indoor use only
• Operating/storage temperature: -5 to 40°C

Range information
The Keva Surface Fittings range from Planet Wattohm offers modular devices designed for flexible installation in surface or flush mounting applications.

Technical specifications

• Model: Protective contact pin
• Neutral pole switched simultaneously: No
• Type of protective contact: Round
• Number of active contacts (round): 4
• Composition: Mechanism with cover (or finger)
• Equipped with additional indicator light: No
• Number of sockets: 2
• Number of modules (modular construction): 4
• Number of phases: 1
• Marking/printing: None
• Type of connection: Automatic terminal
• With protective shutter: No
• With child-protection shutter: Yes
• With text/inscription area: No
• Color: White
• RAL number (equivalent): 9003
• Metallic finish: No
• Transparent: No
• Lockable: No
• Ejection mechanism: No
• Insulated mounting box: No
• With functional lighting: No
• With orientation lighting: No
• Surge protection: No
• Residual current protection: No
• With microfuse: No
• Special supply: None
• Mounting mode: Surface
• Type of fixing: Fixing with screws
• Material: Plastic
• Material quality: Thermoplastic
• Halogen-free: Yes
• Surface treatment: Untreated
• Surface finish: Glossy
• Antimicrobial treatment: No
• Loop-through wiring possible: Yes
• Number of loop-through connections: 1
• With on/off device: No
• Operator color: White
• Angled/inclinable socket: No
• Rated current: 16A
• Rated voltage: 250V
• Frequency (Min-Max): 50-60Hz
• Protection against ingress (IP): IP20
• Impact resistance (IK): IK04
• Device width: 54mm
• Device height: 54mm
• Compatible with Apple HomeKit: No
• Compatible with Amazon Alexa: No
• Compatible with Google Assistant: No
• Compatible with IFTTT: No
• With Wi‑Fi repeater: No
• With integrated Bluetooth speaker: No
• For harsh conditions (per VDE): No
• Compliant with UK Building Regulations (part M): No
• Operating temperature (Min-Max): -5-40°C
• Storage temperature (Min-Max): -5-40°C
• Voltage type: AC
• Electric supply: No
• Terminal identification marking: Yes
• Pre-wired: Yes
• Terminal capacity (Min-Max): 1.5-2.5mm²
• Suitable cable type: Flexible or rigid
• Cable section (Min-Max): 1.5-2.5mm²
• Cable retention: Not applicable
• Connected object: No
• EAN/Barcode: 3271784189626
