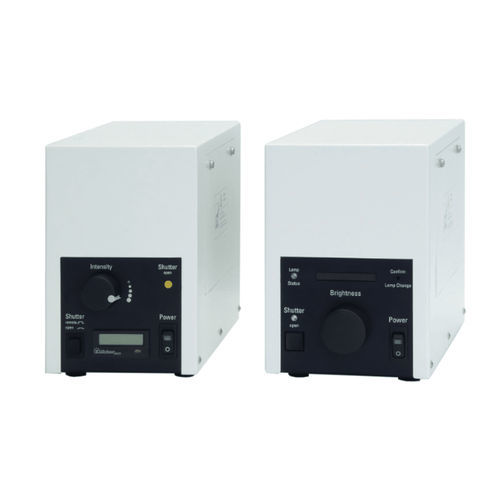

Mercury vapor lamp light source LQ-HXP 120

mercury vapor lamp light source
mercury vapor lamp light source
Add to favorites
Compare this product


Illumination technology
mercury vapor lamp
visible, UV
Other characteristics
Technical applications
for fiber optics, for endoscopes, for microscopes, forensic, for microscopy, for microscope illuminators
Output power

0.21 kVA (0.28552 hp)


This compact device is the ideal external light source for fluorescence excitation in microscopy. Coupling is preferably achieved via liquid light guides. The average service life of a lamp is 2,000 hours. The optimised internal air flow cools the lamp and enables quiet operation. A resettable operating hour meter shows lamp operating hours. The brightness of the lamp output can be varied in 5 steps (0-100%) by means of a mechanical dimmer unit. An ultra-fast shutter opens or closes after activation with approx. 6 ms. The shutter is actuated by means of an appliance switch, but is also possible externally by means of a remote control input or CAN-BUS connection. This compact light source is available as a VIS or UV version in addition to a version that permits the coupling of multi-pin liquid light guides


No catalogs are available for this product.

See all of Leistungselektronik JENA GmbH‘s catalogs
