Harsh environment connector M Series
dataUSBfiber optic

harsh environment connector
harsh environment connector
harsh environment connector
harsh environment connector
harsh environment connector
harsh environment connector
Add to favorites
Compare this product

Characteristics

Type
data
Format
USB, fiber optic
Connection type
crimp, screw
Electrical characteristics
multipole
Other characteristics
compact, small, lightweight, corrosion-resistant, MiL
Field
for military applications, for aerospace applications, for harsh environments, for automotive applications, avionics, for heavy-duty applications

Description

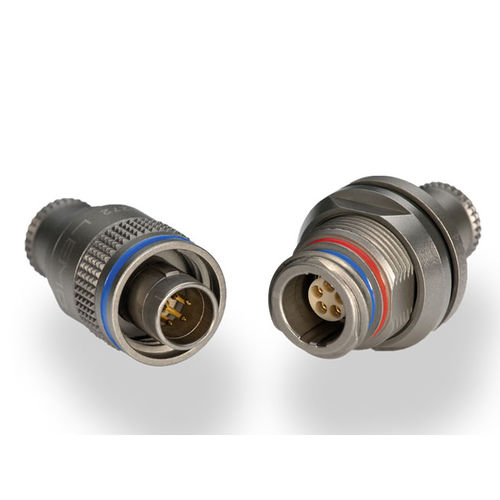

Ratchet screw system enables quick and secure coupling of the connectors. Connectors for harsh environment with multiple alignment keys. Description: M series connectors are lightweight triplestart ratchet coupling type connectors designed for avionics, aerospace, military, security, motorsport and heavy duty applications. The products is a COTS (Commercial Off-The-Shelf), fulfil various MIL –spec requirements and answer most of the MIL-DTL-38999 requirements. The connectors are smaller in size for the same number of pins than standard MIL 38999 products. A threaded option allows mounting standard MIL-DTL-38999L backshell. The M series are identified with a laser engraved part number and production batch number to ensure full traceability from raw materials to delivered product, with many options held in stock. Main Features: • Multipole 2 to 114 contacts • Fibre optic contacts • USB feature • Ratchet coupling mechanism • 6 keying options • Compact and lightweight • Oil and fuel resistant • 12 shell styles • Temp. range -50°C to 200°C • Shielded • Crimp or print contacts • High vibration resistance (gunfire test) • High shock resistance • Optional anti-vibration flange fixing • Dark finish • Nicoral salt spray corrosion resistant • MIL-STD-810F
