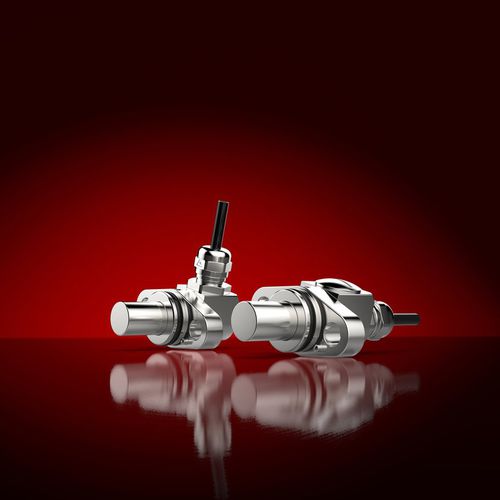

Rotational speed sensor GEL 247

magneticstainless steelrobust

■ Application approved speed sensor based on magnetic measurement principle ■ Maintenance- and wear-free operation due to contactless measurement of rotation ■ Scans measuring scales made of ferromagnetic materials, e.g. toothed wheels ■ Wide measuring range for safe detection of slow rotation without pulse loss and for high-speed rotation ■ Two channels shifted by 90° provide the direction of rotation ■ Robust and compact stainless steel housing suitable for harsh application ■ Constant duty output signals ■ Customised cable fittings Features ■ Module of measuring scale: 1.0 to 3.5 ■ Temperature range: -40 °C to +120 °C ■ Degree of protection: IP 68 ■ In accordance with DIN EN 50155:2008-03 Advantages ■ Low lifecycle costs for the vehicle operator due to high reliability ■ Place-saving sensor in a compact design Fields of application ■ Rail vehicles - Traction control - Anti-slip - Motor speed
