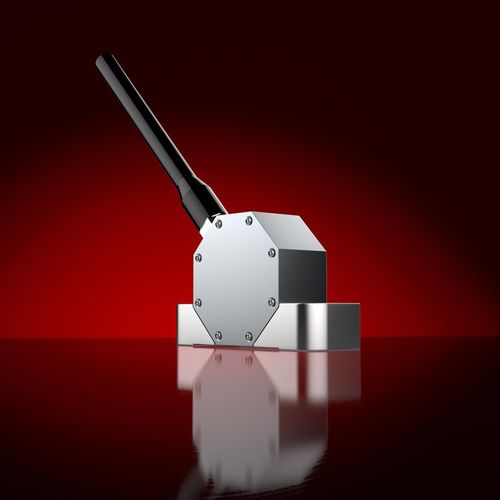

Rotational speed sensor GEL 248magneticcompact2-channel
Add to favorites
Compare this product
Characteristics
- Type of movement
- rotational
- Technology
- magnetic
- Other characteristics
- compact, 2-channel
- Frequency
Min.: 0 Hz
Max.: 25,000 Hz
- Temperature range
Min.: -40 °C
(-40 °F)Max.: 120 °C
(248 °F)
Description
Sensor with HTL-/TTL-output signals
Maintenance and wear-free operation due to contactless measurement of rotational movements
Appropriate for tooth wheels, slotted discs and sprockets
Technical data - GEL 248
Signal pattern - V, X - T
Fields of application - Rail vehicles, mobile machines
Supply voltage - 10 to 30 V DC (HTL) - 5 V (TTL)
Measuring range - 0 Hz to 20 kHz - 0 Hz to25 kHz
Temperature range - -40 °C to +120 °C
Protection class - IP 68
Number of channels - 2
Module m of target wheel - 1.0 to 3.5
Material of target wheel - ferromagnetic steel
Air gap target wheel* - 0.2 mm to 2.8 mm - 0.2 mm to 3.0 mm
Housing - Zinc
