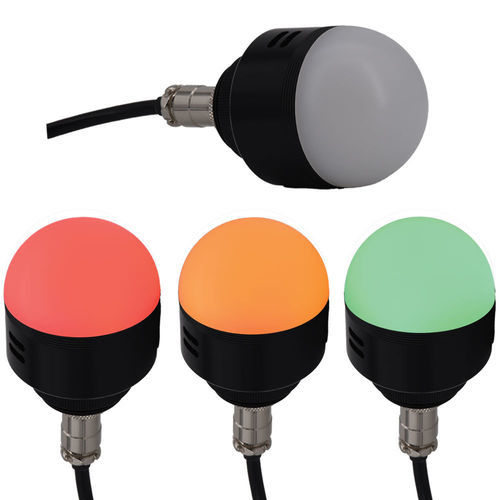

Blinking indicator light SVEI3 series

steadyLEDpanel-mount

The SVEI3 indicators are useful for alerting in case of a fault in an electrical circuit: - **Electrical:** The SVEI3 indicator lights are powered by 24V DC on 1 common wire (+) and 3 wires (-) corresponding to each LED color: red, orange-yellow, and green. - **Connection:** Via aviation-type connector and 70 cm long wires. - **Physical:** Tri-LED indicators to be embedded in a 30 mm diameter cutout, maximum panel thickness 10 mm. Surface mounting possible with the SVEI3-FS1 accessory. Aluminum body and self-extinguishing PC head UL94-VO. Protection rating IP67. Secured by metal nut. - **Indicator Light:** With its prominent mushroom-shaped head and high LED brightness, this signaling unit is ideal for effectively alerting in case of an electrical circuit failure. It is generally installed on a cabinet door or electrical distribution cabinet. - **Sealing:** With its IP65 protection rating, this indicator light can be safely installed outdoors. - **Ease of Connection:** No risk of wiring errors thanks to the correspondence between the color of each wire's insulation and the corresponding LED color. - **Easy Maintenance:** The aviation-type connector with keying allows the LED mushroom to be replaced without interfering with the electrical connection. - **Compliance:** CE, RoHs, Reach. - **Applicable Standard:** EN61547-2000 - **Associated Products:** SVEI3-FS1: accessory for surface mounting. Surface mounting possible with the accessory SVEI3-FS1. - **Variants:** The SVEI3 tri-LED indicators are available with continuous or intermittent light signal. | Order Code | Signal Type | Product Stock | |------------|-------------|---------------| | SVEI3-C-RYG-24 | Continuous | instock | | SVEI3-A-RYG-24 | Intermittent | instock | - **Resources:** Switching and light signaling, New SVEI3 light and sound indicator - **Features / Technical Specifications:** - Power Supply: 24V DC - 3 LEDs: green, orange-yellow, red - Mounting: embedded (30 mm diameter), max panel 10 mm, surface mounting possible with accessory - Body: aluminum, self-extinguishing PC head UL94-VO - Protection Rating: IP67 (body), IP65 (installation) - Connection: aviation connector, 70 cm wires - Standards: CE, RoHs, Reach, EN61547-2000
