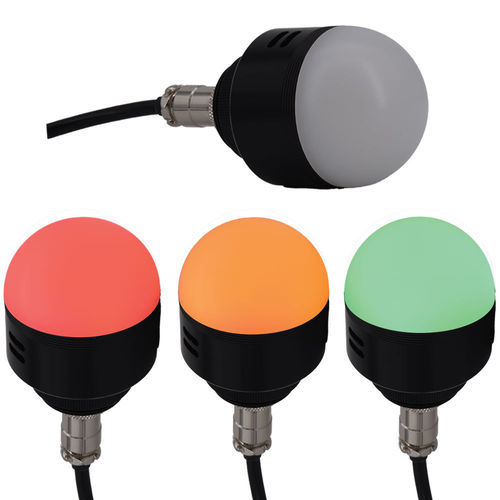

LED indicator light SVEI3-B series

flush-mountsurface-mountIP65

The SVEI3 indicators are useful for alerting in case of a fault on an electrical circuit: - Electrical: The SVEI3-B luminous indicators are powered by 24V DC on 1 common wire (+) and 4 wires (-) corresponding to each LED color (red, orange-yellow, and green) and the buzzer. - Connection: By aviation-type connector and 70 cm long wires. - Physical: Tri-LED indicators with integrated buzzer, to be flush-mounted in a 30 mm diameter cutout, maximum panel thickness 10 mm. Surface mounting possible with the SVEI3-FS1 accessory. Body in aluminum and head in self-extinguishing PC UL94-VO. Protection rating IP65. Secured by metal nut. - Luminous indicator: With its prominent mushroom-shaped head and high LED brightness, this signaling unit is ideal for effectively alerting in case of an electrical circuit failure. It is generally installed on a cabinet or electrical distribution box door. - Sound indicator: The signaling unit is equipped with a buzzer that emits a continuous or intermittent sound signal depending on the model, with a power of 70 to 80 dB (at 1 m). - Waterproofing: With its IP65 protection rating, this luminous indicator can be safely installed outdoors. - Easy connection: No risk of wiring error thanks to the color match between each wire's insulation and the corresponding LED color. - Easy maintenance: The aviation-type connector with keying allows the LED mushroom to be replaced without interfering with the electrical connection. - Compliance: CE, RoHs, Reach. - Applicable standard: EN61547-2000 - Associated products: SVEI3-FS1: accessory for surface mounting. Surface mounting possible using the SVEI3-FS1 accessory. - Technical resources: Switching and luminous signaling, New SVEI3 luminous and sound indicator Variants and order codes: Order code | Signal type | Stocked product --- | --- | --- SVEI3-BC-RYG-24 | Continuous | In stock SVEI3-BA-RYG-24 | Intermittent | In stock - Technical specifications: - Power supply: 24V DC - Connection: aviation-type connector, 70 cm wires - LED colors: red, orange-yellow, green - Buzzer: 70-80 dB (at 1 m), continuous or intermittent depending on model - Mounting: flush (30 mm diameter cutout, max 10 mm panel) or surface with accessory - Body: aluminum, head: self-extinguishing PC UL94-VO - Protection: IP65 - Compliance: CE, RoHs, Reach - Standard: EN61547-2000
