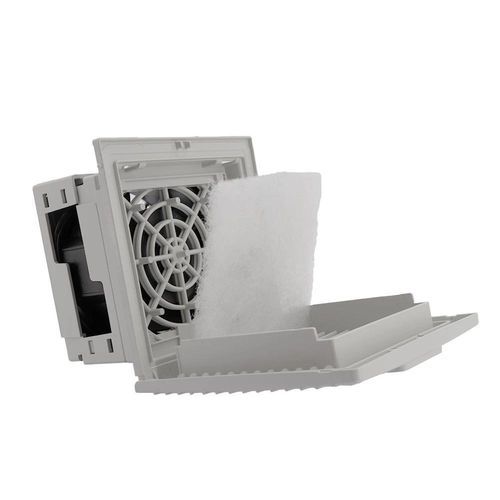

Plastic ventilation grill GTA-92-VFF

with dust filtersquare

Ventilated air grilles accelerate air circulation: - **Air Grilles:** The grilles feature subtle outer striations for a positive visual impact. All molded parts are made from highly resistant, self-extinguishing ABS, certified UL94 VO. The RAL color is 7035. The foam gasket and filter ensure an IP54 protection rating. - **Filter:** Filter category: G2 The filter can be replaced in seconds thanks to the tool-free openable front grille. - **Fan:** Fans are equipped with spring terminals for faster and safer connections. By default, the terminal position is above the fan, but it can be easily changed to below using the Fan Quick Lock system. By default, the airflow direction is from outside to inside the enclosure, but it can be easily reversed using the quick lock system. Fan for 230V AC voltage. Power consumption 20W. **Airflow 26m³ without filter and 15m³ with filter.** - **Integration:** Installation is quick thanks to the simple square cutout of the enclosure and the snap-in mounting system. No screws are needed. **Dimensions: Front 114x114mm, depth 62mm.** **Fitting in 92x92mm cutout.** - **Applications:** Triggered by the GTA-THV thermostat, the ventilated air grille cools the electrical cabinet by expelling hot air. - **Conformities:** CE, RoHs, REACH. - **Features / Technical Specifications:** - Ventilated air grille for electrical cabinet - Front: 114x114mm - Depth: 62mm - Fitting: 92x92mm cutout - Protection rating: IP54 - Material: Self-extinguishing ABS UL94 VO - Color: RAL 7035 - Filter category G2, tool-free replacement - Fan 230V AC, power consumption 20W - Airflow: 26m³/h without filter, 15m³/h with filter - Spring terminals, position adjustable - Airflow direction adjustable - Snap-in mounting, no screws - Certifications: CE, RoHs, REACH
