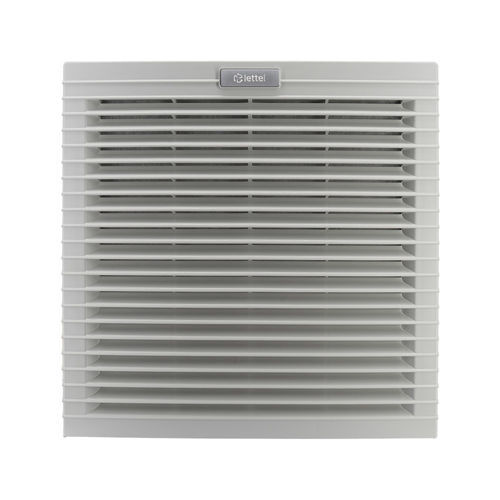

Plastic ventilation grill GTA-291-FF

squarewith dust filter

Ventilation grilles allow for the ventilation of the electrical cabinet. - Ventilation Grilles: The grilles feature low external ridges and provide a positive visual impact. All molded parts are made of highly resistant, self-extinguishing ABS, certified UL94 VO. The RAL is 7035. The foam gasket and filter ensure an IP54 protection rating. - Filter: Filter category: G3. The filter replacement takes only a few seconds thanks to the tool-free openable front grille. - Integration: Installation is quick due to the simple square cut-out of the housing and the snap-in fastening system. No screws are required. - Dimensions: Front face 325x325mm, depth 123mm. - Embedding in cut-out 291x291mm. - Features / Technical Specifications: - Front face: 325x325mm - Depth: 123mm - Embedding cut-out: 291x291mm - Material: Self-extinguishing ABS UL94 VO - Color: RAL 7035 - Protection rating: IP54 - Filter: G3 category, tool-free replacement - Fastening: Snap-in, screwless
