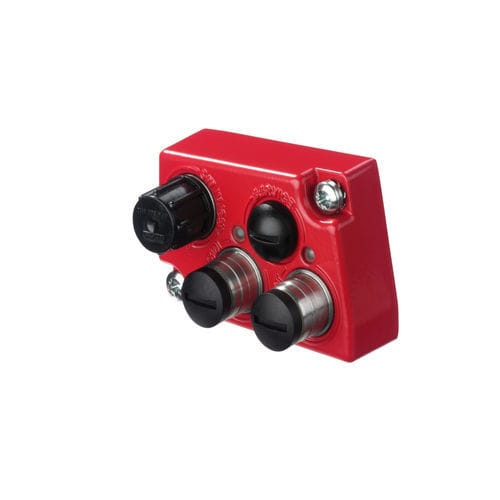

Communication gateway MS 348

USBProfiNet

Suitable for - BCL 348i BPS 348i Supply voltage UB - 18 ... 30 V, DC, (PELV, class 2) Type - PROFINET, PROFINET Type - USB 2.0 Number of connections - 4 Piece(s) Function - PWR / SW IN / OUT Type of connection - Connector Thread size - M12 Type - Male Material - Metal No. of pins - 5 -pin Encoding - A-coded Function - Service interface Type of connection - USB Connector type - USB 2.0 Mini-B Function - HOST / BUS IN Type of connection - Connector Thread size - M12 Type - Female Material - Metal No. of pins - 4 -pin Encoding - D-coded Function - BUS OUT Type of connection - Connector Thread size - M12 Type - Female Material - Metal No. of pins - 4 -pin Encoding - D-coded Design - Cubic Dimension (W x H x L) - 64 mm x 33.5 mm x 43.5 mm Housing material - Metal Metal housing - Diecast aluminum Net weight - 74 g Housing color - Red Type of display - LED Number of LEDs - 2 Piece(s) Ambient temperature, storage - 0 ... 40 °C Relative humidity (non-condensing) - 90 % Degree of protection - IP 65, Only for screwed M12 plugs or screwed cable glands and mounted caps. Minimum tightening torque of the housing connecting screw of the connection hood is 1.4 Nm! Protection class - III Test procedure for EMC in accordance with standard - EN 61000-6-2 EN 61000-6-4 Test procedure for shock in accordance with standard - IEC 60068-2-27, test Ea Test procedure for continuous shock in accordance with standard - IEC 60068-2-27, test Ea Test procedure for vibration in accordance with standard - IEC 60068-2-6, test Fc
