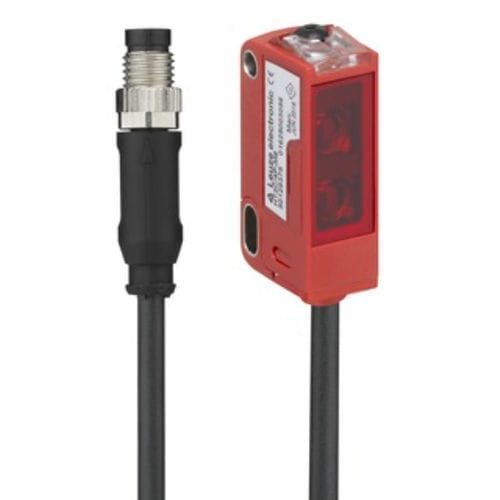

Diffuse reflective sensor photoelectric sensor ODT3C.3/L6-200-M8

with background suppressionrectangularred light

Product
ODT3C.3/L6-200-M8 - distance diffuse sensor with background suppression providing IO-Link measurement output and two independent switching outputs.

Basic data
Series: 3C
Operating principle: Distance diffuse sensor with background suppression

Special version
2 independent switching outputs; Measurement value output via IO-Link

Optical data
Black-white error: < ± 3 mm
Operating range (guaranteed): 0.01 ... 0.15 m
Adjustment range: 30 ... 150 mm
Beam path: Focused
Light source: LED, red (645 nm)
Transmitted-signal shape: Pulsed
LED group: Exempt group (in acc. with EN 62471)
Light spot size [at sensor distance]: 10 mm x 10 mm [100 mm]
Spot geometry: Square
Focus: Fixed (focal distance 150 mm)

Measurement data
Measurement range: 30 ... 150 mm
Resolution: 1.0 mm
Accuracy: -3 ... 3 mm
Reproducibility (1 sigma): 1 ... 1.4 mm
Measurement value output: via IO-Link
Optical distance principle: Triangulation

Electrical data
Protective circuit: Polarity reversal protection; Short-circuit protected

Performance data
Supply voltage UB: 12 ... 30 V DC
Residual ripple: 0 ... 15 % (of UB)
Open-circuit current: 0 ... 25 mA

Outputs
Number of digital switching outputs: 2

Switching outputs
Type: Digital switching output
Max switching current: 100 mA

Switching output 1
Switching element: Transistor, push-pull
Switching principle: IO-Link / light switching (PNP) / dark switching (NPN)

Switching output 2
Switching element: Transistor, push-pull
Switching principle: Light switching (PNP) / dark switching (NPN)

Time behavior
Switching frequency: 750 Hz
Response time: 0.66 ms
Readiness delay: 300 ms
Response jitter: 170 µs

Interface / IO-Link
Type: IO-Link
COM mode: COM3
Profile: Smart sensor profile
Min. cycle time: COM3 = 0.6 ms
Frame type: 2.V
Specification: V1.1
Device ID: 2200
SIO-mode support: Yes

Connection
Number of connections: 1

Connection 1
Function: Signal OUT / Voltage supply
Type of connection: Cable with connector
Cable length: 200 mm
Sheathing material: PUR
Cable color: Black
Wire cross section: 0.2 mm²
Thread size: M8
Type: Male metal connector, 4-pin

Mechanical data
Dimensions (W x H x L): 11.4 mm x 34.2 mm x 18.3 mm
Housing material: PC-ABS (plastic)
Lens cover: PMMA
Net weight: 20 g
Housing color: Red
Mounting: Through-hole; optional mounting device
Recommended tightening torque (M3): 0.9 N·m
Material compatibility: ECOLAB

Operation and display
Display: 2 LEDs
Operational control: Teach button (functions: light/dark switching; range adjustment)

Environmental data
Ambient temperature, operation: -40 ... 60 °C
Ambient temperature, storage: -40 ... 70 °C

Certifications
Degree of protection: IP67; IP69K
Protection class: III
Approvals: c UL US
Standards applied: IEC 60947-5-2

Technical specifications

• Model: ODT3C.3/L6-200-M8
• Series: 3C
• Measurement range: 30–150 mm
• Resolution: 1.0 mm
• Accuracy: ±3 mm
• Output: IO-Link + 2 digital switching outputs (max 100 mA)
• Supply voltage: 12–30 V DC
• Connection: M8, 4-pin, cable 200 mm (PUR)
• Housing: PC-ABS, red; dimensions 11.4 x 34.2 x 18.3 mm; net weight 20 g
• Protection: IP67 / IP69K
• Operating temperature: -40 … 60 °C
