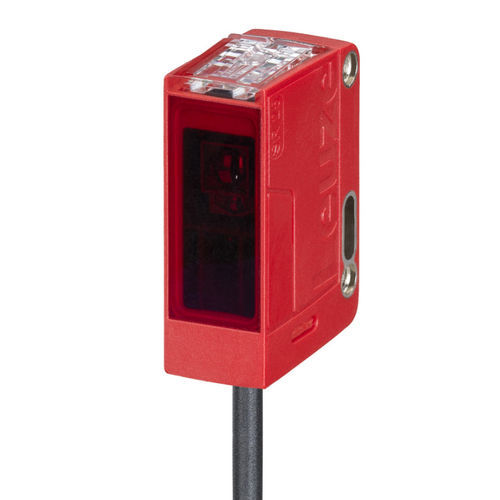

Time-of-flight sensor ODT25CL1-3M.3/L6

Short description
Distance diffuse sensor with background suppression

Key features

• Operating principle: Distance diffuse sensor with background suppression
• Series: 25C
• Optical distance measurement principle: Time of flight (ToF)
• Light source: Red laser, wavelength 680 nm, laser class 1 (IEC/EN 60825-1)
• Measurement range: 50 ... 3,500 mm (guaranteed operating range 0.07 ... 3 m)
• Adjustment range: 50 ... 3,500 mm
• Measurement value output: via IO-Link
• IO-Link: COM3, Smart sensor profile, Device ID 2221, SIO-mode supported
• 2 independent digital switching outputs (transistor, push-pull), switching current max. 90 mA
• Cable connection: 1 cable, 2,000 mm, PUR, black, 4-wire, wire cross section 0.2 mm²
• Compact mechanical dimensions: 15 x 42.7 x 30 mm; net weight 30 g; housing color red; housing material PC-ABS; lens cover PMMA
• Protection: IP67 and IP69K; protection class III

Optical data
Black-white error: ±20 mm (see diagram)
Operating range: 0.07 ... 3 m (guaranteed operating range)
Adjustment range: 50 ... 3,500 mm
Beam path: Focused
Light source: Laser, Red
Wavelength: 680 nm
Laser class: 1, IEC 60825-1:2014 / EN 60825-1:2014+A11:2021
Transmitted-signal shape: Pulsed
Spot geometry: Round
Shift angle: typ. ± 2.5°

Measurement data
Measurement range: 50 ... 3,500 mm
Resolution: 1.0 mm
Accuracy: -20 ... 20 mm
Reproducibility (1 sigma): 0 ... 13 mm
Measurement value output: via IO-Link
Optical distance measurement principle: Time of flight

Electrical data
Protective circuit: Polarity reversal protection; short circuit protected; transient protection
Supply voltage UB: 10 ... 30 V DC (incl. residual ripple)
Residual ripple: 0 ... 15 % from UB
Open-circuit current: 0 ... 35 mA

Performance / Time behaviour
Switching frequency: 7 ... 15 Hz depending on diffuse reflectance
Response time: 33 ... 70 ms depending on diffuse reflectance
Readiness delay: 300 ms

Interface / IO-Link
Type: IO-Link (COM mode: COM3)
Profile: Smart sensor profile
Min. cycle time COM3: 0.6 ms
Frame type: 2.V, Specification V1.1, Device ID 2221

Connection / Cable
Number of connections: 1
Function: Signal IN / Signal OUT / Voltage supply
Type of connection: Cable, length 2,000 mm, sheathing PUR, color black, 4-wire, wire cross section 0.2 mm²

Operation and display
Type of display: LED (2 LEDs)
Operational controls: Teach button (for light/dark switching and range adjustment)

Environmental data
Ambient temperature, operation: -30 ... 50 °C
Ambient temperature, storage: -40 ... 70 °C

Certifications & Standards
Degree of protection: IP67, IP69K
Approvals: c UL US
Standards applied: IEC 60947-5-2

Part number
Part no.: 50154569

Characteristics / Technical specifications

• Model: ODT25CL1-3M.3/L6
• Series: 25C
• Operating principle: Distance diffuse sensor with background suppression
• Measurement principle: Time of flight (ToF)
• Measurement range: 50 ... 3,500 mm (guaranteed 0.07 ... 3 m)
• Resolution: 1.0 mm
• Accuracy: -20 ... 20 mm
• Reproducibility: 0 ... 13 mm (1 sigma)
• Light source / wavelength: Red laser, 680 nm
• Laser class: 1 (IEC/EN 60825-1)
• Outputs: 2 digital switching outputs (push-pull), max. switching current 90 mA
• IO-Link: COM3, Smart sensor profile, min. cycle time 0.6 ms
• Supply voltage: 10 ... 30 V DC
• Cable: 2,000 mm PUR, 4-wire
• Dimensions (W x H x L): 15 x 42.7 x 30 mm; Net weight: 30 g
• Housing: PC-ABS; Lens cover: PMMA; Housing color: Red
• Mounting: Through-hole mounting (optional mounting device); recommended tightening torque for M3: 0.9 N·m
• Protection: IP67 / IP69K; Protection class III
• Operating temperature: -30 ... 50 °C; Storage temperature: -40 ... 70 °C
• Approvals / Standards: c UL US; IEC 60947-5-2
