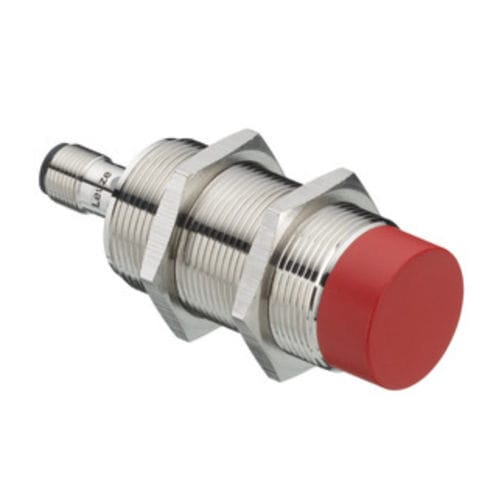

Inductive proximity sensor IS 230MM.2/4NO-40N-S12

cylindricalM30digital

Protective circuit - Polarity reversal protection Short circuit protected Supply voltage UB - 10 ... 36 V, DC Residual ripple - 0 ... 10 %, From UB Open-circuit current - 0 ... 15 mA Repeatability, max. (in % of Sr) - 10 %, ≤ Number of digital switching outputs - 1 Piece(s) Voltage type - DC Switching current, max. - 200 mA Residual current, max. - ≤ 0.05 mA Voltage drop - ≤ 2.5 V at 200 mA Switching principle - NO (normally open) Switching frequency - 100 Hz Number of connections - 1 Piece(s) Function - Signal OUT Voltage supply Type of connection - Connector Tightening torque per thread section - 25 Nm (consistent, without variation over the distance) Type - Male No. of pins - 4 -pin Encoding - A-coded Dimension (Ø x L) - 30 mm x 87 mm Thread size - M30 x 1.5 mm Type of installation - Non-embedded Net weight - 143 g Housing color - Red, RAL 3000 Silver Standard measuring plate - 120 x 120 mm², Fe360 Number of LEDs - 4 Piece(s) Ambient temperature, operation - -25 ... 70 °C Ambient temperature, storage - -25 ... 70 °C Protection class - II Approvals - c UL US Test procedure for EMC in accordance with standard - IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 Standards applied - IEC 60947-5-2 Aluminum - 0.5 Stainless steel - 0.8 Copper - 0.3 Brass - 0.5 Fe360 steel - 1
