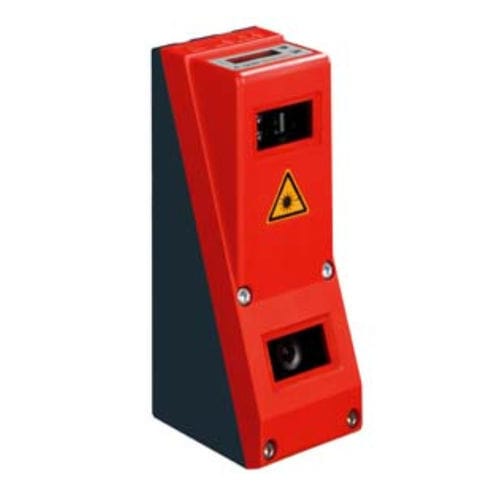

Laser profile sensor LRS 36/PB.10

Series - 36 Special version - Synchronization input Laser class - 2M, IEC/EN 60825-1:2014 Supply voltage UB - 18 ... 30 V, DC Number of digital switching outputs - 2 Piece(s) Switching element - Transistor, Push-pull Switching element - Transistor, Push-pull Response time - 10 ms Number of connections - 3 Piece(s) Function - Signal IN Signal OUT Voltage supply Type of connection - Connector Type - Male Material - Metal No. of pins - 8 -pin Function - Configuration interface Data interface Type of connection - Connector Material - Metal No. of pins - 4 -pin Encoding - D-coded Function - PROFIBUS IN PROFIBUS OUT Type of connection - Connector Thread size - M12 Type - Female Material - Metal No. of pins - 5 -pin Encoding - B-coded Dimension (W x H x L) - 56 mm x 160 mm x 74 mm Housing material - Metal Plastic Metal housing - Aluminum Lens cover material - Plastic Net weight - 620 g Ambient temperature, operation - -30 ... 50 °C Ambient temperature, storage - -30 ... 70 °C Protection class - III Approvals - c UL US Standards applied - IEC 60947-5-2
