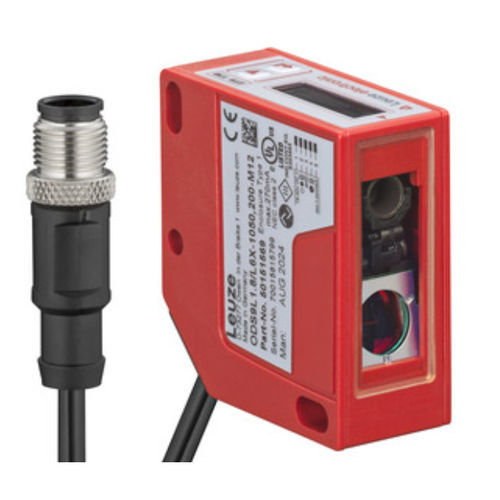

Optical distance sensor ODS9L1.8/L6X-1050,200-M12

digitalM12 connectorIP67

Length measurement in material cutting Object measurement Type of scanning system - Against object Laser class - 1, IEC/EN 60825-1:2014 Measurement range - 50 ... 1,050 mm Accuracy, distant range - 2 % Reference value, accuracy - Measurement distance 200 mm … 1000 mm Reproducibility (1 sigma) - 0.2 mm Referencing - No Optical distance measurement principle - Triangulation Supply voltage UB - 18 ... 30 V, DC Number of digital switching outputs - 2 Piece(s) Switching element - Transistor, Push-pull Switching element - Transistor, Push-pull Type - IO-Link Specification - V1.1 Type of connection - Cable with connector, Turning, 90° Cable length - 200 mm Thread size - M12 Material - Plastic No. of pins - 5 -pin Dimension (W x H x L) - 21 mm x 50 mm x 50 mm Housing material - Plastic Lens cover material - Glass Net weight - 50 g Operational controls - Control buttons PC software Ambient temperature, operation - -20 ... 50 °C Ambient temperature, storage - -30 ... 70 °C Ambient light sensitivity - 20,000 lx, EN 60947-5-2 Protection class - III Approvals - UL Standards applied - IEC 60947-5-9
