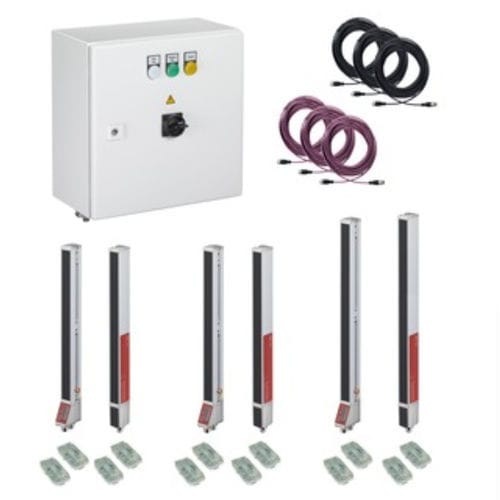

Contour measurement system CMS748i-1120-1120-1200

lengthlighttemperature

Functions - For a minimum object height ≥ 50 mm Operating range - 0.1 ... 4.5 m Operating range, transparent media - 0.1 ... 1.75 m Output current, continuous current per channel, max. - 100 mA Supply voltage UB - 100 ... 263 V, AC Voltage type - DC Switching voltage - 24 V, VIN Voltage type - AC Switching voltage - 24 V, VIN Function - Configuration / process data Function - Configuration / process data Number of connections - 13 Piece(s) Function - Earthing Type of connection - Screw fitting Material - Metal Thread size - M12 Material - Metal No. of pins - 4 -pin Encoding - D-coded Thread size - M12 Type - Female No. of pins - 8 -pin Encoding - A-coded Function - Rotary encoder connection (not in combination with length measuring light curtain) Thread size - M12 Type - Female Material - Metal No. of pins - 8 -pin Encoding - A-coded Type of connection - Connector Thread size - M12 Type - Female Material - Metal No. of pins - 4 -pin Encoding - A-coded Function - Digital switching input Type of connection - Connector Thread size - M12 Type - Female Material - Metal No. of pins - 4 -pin Encoding - A-coded Function - Digital switching output Type of connection - Connector Thread size - M12 Type - Female Material - Metal No. of pins - 4 -pin Encoding - A-coded Function - Digital switching output Type of connection - Connector Type - Female No. of pins - 4 -pin Encoding - A-coded Housing material - Metal Lens cover material - Plastic Note - Dimensions of individual set items, see dimensioned drawings Ambient temperature, operation - 0 ... 45 °C Ambient temperature, storage - -20 ... 70 °C Approvals - CSA
