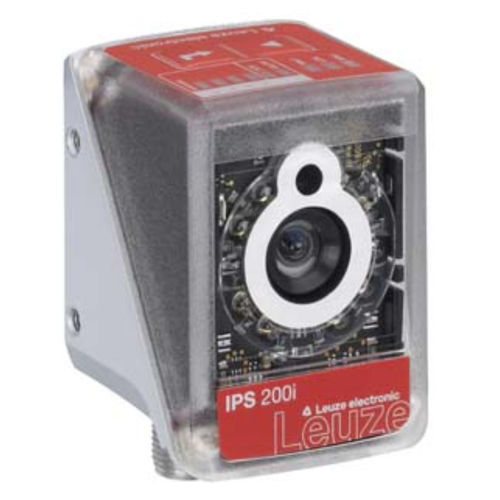

Digital camera IPS 208i FIX-N3-102-I3

industrialinfraredEthernet

Application - Single compartment depth Software functions - Compartment fine positioning Working range - 50 ... 400 mm Camera resolution, horizontal - 1,280 px Camera resolution, vertical - 960 px Marker size (round) - 5 ... 15 mm Reproducibility (1 sigma) - 0.1 mm, depending on the application Supply voltage UB - 18 ... 30 V, DC Number of digital switching inputs - 3 Piece(s) Number of digital switching outputs - 5 Piece(s) Number of connections - 2 Piece(s) Type of connection - Connector Thread size - M12 No. of pins - 12 -pin Encoding - A-coded Type of connection - Connector No. of pins - 4 -pin Encoding - D-coded Dimension (W x H x L) - 43 mm x 61 mm x 44 mm Housing material - Metal Plastic Lens cover material - Plastic Net weight - 120 g Operational controls - Button(s) Ambient temperature, operation - 0 ... 50 °C Ambient temperature, storage - -20 ... 70 °C Relative humidity (non-condensing) - 90 % Approvals - c UL US
