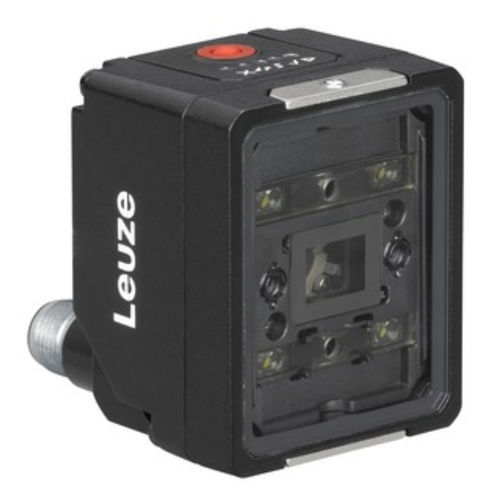

Color vision sensor IVS 108 M1-102-W0

Software functions - Presence control Camera resolution, horizontal - 320 px Camera resolution, vertical - 240 px Max. throughput per second - 20 pieces per second Measurement value calculation time - 50 ms Supply voltage UB - 10 ... 30 V, DC Average power consumption - 4.2 W Number of digital switching inputs - 2 Piece(s) Type - Optical coupler, polarity-independent Voltage type - DC Switching current, max. - 10 mA Switching voltage - 30 V DC Number of digital switching outputs - 3 Piece(s) Type - Digital switching output Switching current, max. - 100 mA Switching element - Transistor, Push-pull Switching principle - PNP / NPN switchable Switching element - Transistor, Push-pull Switching principle - PNP / NPN switchable Switching element - Transistor, Push-pull Switching principle - PNP / NPN switchable Type - Ethernet Address assignment - DHCP Manual address assignment Transmission speed - 10 Mbit/s 100 Mbit/s Function - Service Switch functionality - None Transmission protocol - TCP/IP Number of connections - 2 Piece(s) Function - Signal IN Signal OUT Voltage supply Type of connection - Connector Thread size - M12 Type - Male Material - Metal No. of pins - 17 -pin Encoding - A-coded Function - Configuration interface Type of connection - Connector Thread size - M12 Type - Female Material - Metal No. of pins - 8 -pin Encoding - X-coded Design - Cubic Dimension (W x H x L) - 47 mm x 58 mm x 58 mm Housing material - Metal Metal housing - Aluminum Lens cover material - Plastic / PMMA Net weight - 173 g Housing color - Black Type of fastening - Mounting thread Via optional mounting device
