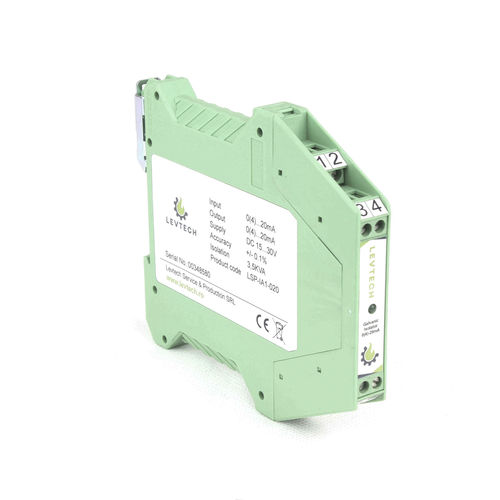

Signal isolator LSP-IA1
galvaniccompositepolymer

signal isolator
signal isolator
signal isolator
signal isolator
signal isolator
signal isolator
signal isolator
Add to favorites
Compare this product


Characteristics

Type
signal, galvanic
Material
composite, polymer
Electrical characteristics
DC
Other characteristics
analog output, PLC

Description

This device ensures a safe galvanic isolation between input, output and supply in an analog 0(4)-20mA signal transmission circuit. The galvanic isolation eliminates ground loops, reduces noises and blocks transient signals. What is the Galvanic 4-20mA Isolator? The LSP-IA1 isolator is designed to make galvanic isolation between the transmitter and the processing unit (PLC). Whit its 3 point galvanic isolation, it separates the input, output and the supply voltage from each other. This instrument is suitable for any industrial applications, where 0(4) – 20mA analog signal is used. It reduces the impact of interferences and ground potential differences. The module ensures 3500VDC isolation and the output is loop powered. Features • Three way isolated • Loop powered output • 3500VDC isolation • TS-35 DIN rail mounting • +/-0.1% accuracy • IP40 case • Screw terminals • Power LED • 4-20mA analog output • Supply voltage 24VDC • Made in EU
