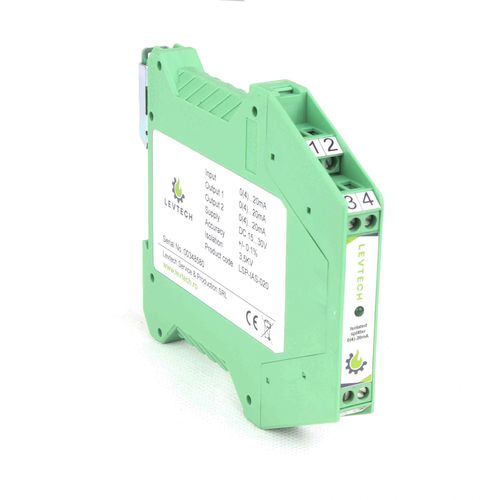

Signal splitter LSP-IAS series
insulated

signal splitter
signal splitter
signal splitter
signal splitter
signal splitter
signal splitter
signal splitter
Add to favorites
Compare this product


Characteristics

Options
signal
Protection level
insulated

Description

This device splits the analog input into two output, identical to the input signal and in the same time it makes a galvanic isolation. The Isolated splitter is usually used in automation systems, where the analog signal of a measurement device has to be connected into two processing unit. For example a temperature transmitter 4-20mA output is connected to the input of this device and the output1 is connected to the PLC, output2 is connected to a display which will show the temperature value. It can be ordered for 0(4)-20mA, 0-10V or 0-5V standard analog signals. It ensures also a 4 way galvanic isolation, which mean that the Input, Output1, Output2 and the power supply is isolated from each other. The galvanic isolation reduces the impact of interference and ground potential differences. Features • Four way isolated • 3500kV isolation • TS-35 DIN rail mounting • +/-0.1% accuracy • Ip40 case • Screw terminals • Power LED • 0-10V or 0-5V analog output • Supply voltage 24VDC • Made in EU
