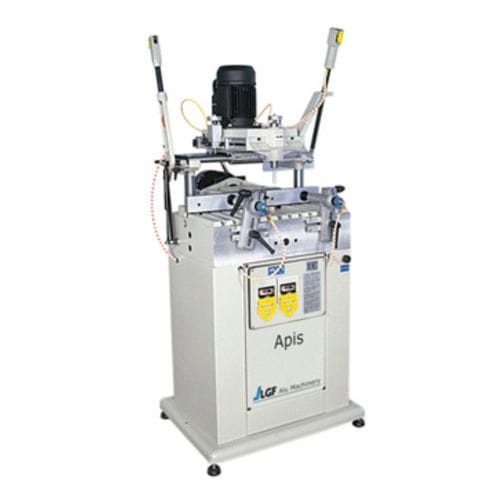

Horizontal copy router APIS A - APIS M

for profiles

• Copy router for passing through operations particularly suitable for PVC profiles • Automatic feeding of the horizontal boring head (only on "A" version) • 1,1 Kw (1,5 HP) three phase motor - 2800 r.p.m. • Spindle revolution 14.000/min • Working pressure 7 bar • Overall dimensions 77x68x150 cm • Weight 150 kg • Working capacity : • VERTICAL HEAD • Vertical stroke 110 mm • Longitudinal stroke 220 mm • Transversal stroke 115 mm • HORIZONTAL BORING HEAD • Router bits interaxis 22mm • Horizontal bits stroke 50 mm • Vertical bits stroke 6-80 mm • Nr 2 copy templates • Nr 2 Manual tracer points with double diameters • Pneumatic clamps • Nr 1 cutter tool Ø 8 mm • Nr 1 collet Ø 8 mm • Nr 3 router bits • Nr 1 profile end stop • Air filter • Service spanners
