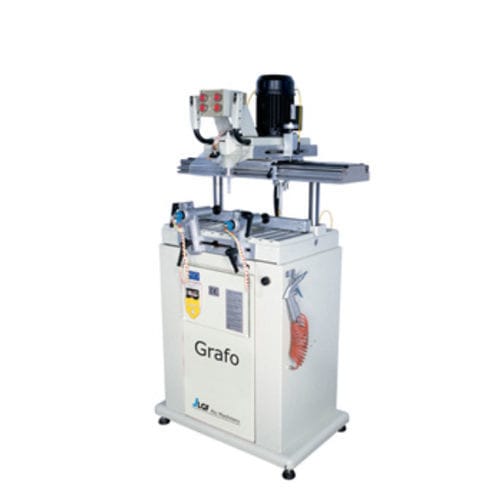

3-axis copy router GRAFO

vertical

• Copy router for passing trough operations • Semi-automatic head desent/rising by mens of buttons • Automatic head locking at tany position • Big dimesion template • Profile depth end stop with 6 presettings revoler device • 1,1 Kw (1,5HP) 3 phase motor - 2800 r.p.m. • Spindle revolutions 14.000/min • Vertical stroke 160 mm • Longitudinal stroke 565 mm • Transversal stroke 120 mm • Working pressure 7 bar • Overall dimensions 57x82x130 cm • Weight 130 kg • Nr 1 copy template • Nr 2 pneumatic copier pins with double diameter • Nr 2 horizontal pneumatic clamps • Nr 1 router bit Ø 6 mm • Nr 1 collet Ø 8 mm • Profile end stop • Automatic lubrication by means of nebulizer • Air filter • Air gun • Service spanners
