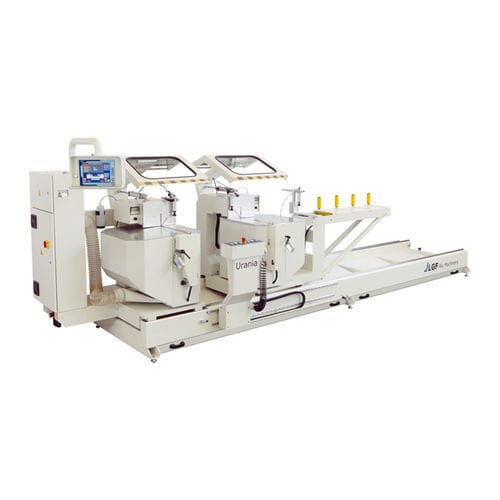

Cut-off saw URANIA

for metalsautomaticCNC

• Electro-welded and stabilized basement • Macchine equipped with electronic positioner c/w 10" color monitor and touch screen system • USB port to store/upload cutting lists • Full protection of the sawblades by means of safety hoods with automatic closing • Moving of right head, equipped with brushless motor, on temperated and rectified rack and pinion • Reading of the displacment by means of encoder • Siling of the right head on linear guides and balls ricirculating skids • Vertical radial sliding of the sawing group on linear guides and balls ricirculating skids with oleo-pneumatic cylinder • Pneumatic tilting of the sawing group from 90 ° to -45° with possibility of manual setting of intermediate degrees • Heads manual rotation with pneumatic indexe at 45°/90°/-45° • Machine predisposed for chippings suction with connections Ø 120 mm • 3 Kw (4 HP) 3 phase motors - 2800 r.p.m. • Cutting lenghts 4000/5000 mm • Max. Sawblade Ø 550 mm • Sawblade shaft Ø 30 mm • Working pressure 7 Bar • Overall dimensions 575/675x153x196 cm • Weight 2230/2370 Kg • Standard bar lable printer • Manual central support • Pneumatic central support • Over size cut device • Trim cut device
