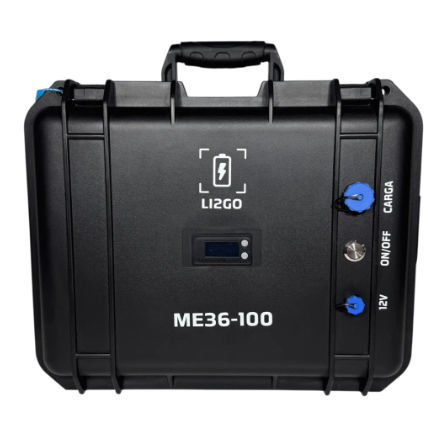

Lithium battery ME36-100

box36 Vfor marine applications

Overview
Includes battery, 42V 8A charger, aluminum case and connection cables. Lithium battery with Bluetooth communication. Designed for Panoptix LiveScope and Lowrance; compatible with Motorguide, Minnkota and other marine motors and electronics.

Recommended uses

• Power source for small boats, fishing skiffs, fishing kayaks and portable marine craft.
• Suitcase-style format for easy transport and installation.
• 12V secondary output for fishfinders, transducers and onboard electronics.

Description
The ME36-100 lithium battery is engineered for small marine vessels, providing a lightweight, high-performance energy source for electric motors, fishfinders, GPS, lights and other onboard electronics. Bluetooth connectivity enables real-time battery monitoring via smartphone for operational visibility during long outings.

Key features (summary)

• Nominal voltage: 36 V (maximum charge voltage 42 V).
• Capacity: 100 Ah (approx. 3.6 kWh) with continuous current capability up to 100 A.
• Secondary 12V output for electronics and transducers.
• Compact, lightweight design suitable for small boats.
• Marine-grade design for resistance to harsh conditions and long service life compared to lead-acid alternatives.
• Includes 42V 8A charger, aluminum housing and connection cables.

Product details
Weight: 17 kg
Dimensions: 41 × 33 × 18 cm
Voltage: 36V
Capacity: 100Ah
Includes charger: Yes
Brand: Li2GO

Technical specifications

• Model: ME36-100
• Nominal voltage: 36 V
• Maximum charge voltage: 42 V
• Capacity: 100 Ah (approx. 3.6 kWh)
• Maximum continuous current: 100 A
• Secondary output: 12 V for fishfinders and transducers
• Weight: 17 kg
• Dimensions (L×W×H): 41 × 33 × 18 cm
• Connectivity: Bluetooth for smartphone monitoring
• Accessories included: 42V 8A charger, aluminum case and connection cables
• Applications: electric outboard motors (e.g. Motorguide, Minnkota), fishfinders and marine electronics (e.g. Panoptix LiveScope, Lowrance)
• Format: suitcase (portable)
• Durability: designed for marine environments and extreme conditions
