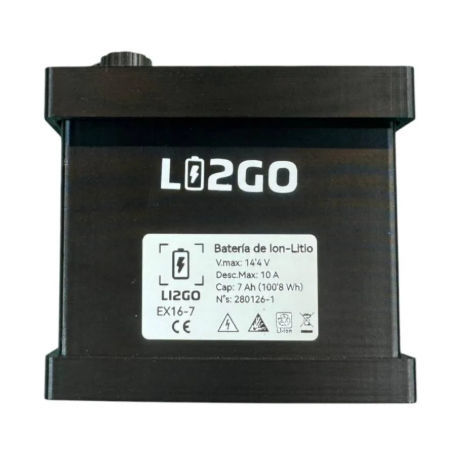

Lithium battery EX16-7

for marine applicationsmaintenance-free

Description
The Li2GO EX series lithium batteries are designed to power fishfinders, transducers and marine displays. The EX16-7 is optimized for fishing kayaks and small boats, offering a lightweight, waterproof power source with straightforward connectivity suitable for marine environments.

Compatibility and KIT contents

• Compatible with Garmin Panoptix, LVS34, Garmin ECHOMAP, LiveScope, Lowrance and most fishfinder systems on the market.
• KIT includes: battery + charger + connection cable.
• Supports fast charging via USB and Micro USB.

Autonomy and use
Example runtime: with an ECHOMAP™ UHD2 plotter (5, 6 or 7 inches) the EX16-7 can deliver more than 7 hours of fishing operation. Designed to maximize on-water time while minimizing weight and energy consumption.

Main features

• Nominal voltage: 14.4 V (maximum charge voltage: 16.8 V).
• Capacity: 7 Ah (100.8 Wh).
• Lightweight and compact: 0.5 kg; dimensions 9.5 × 6 × 10.5 cm.
• Fast charge capability for extended operating time.
• Water-resistant construction for marine conditions.
• Maintenance-free and longer service life compared with conventional batteries.

Characteristics / technical specifications

• Model: EX16-7
• Brand: Li2GO
• Weight: 0.5 kg
• Dimensions: 9.5 × 6 × 10.5 cm
• Nominal voltage: 14.4 V
• Maximum charge voltage: 16.8 V
• Capacity: 7 Ah (100.8 Wh)
• Includes charger: Yes (KIT: battery + charger + connection cable)
• Charging: fast USB and Micro USB
• Applications: fishfinders, transducers and displays for small vessels
