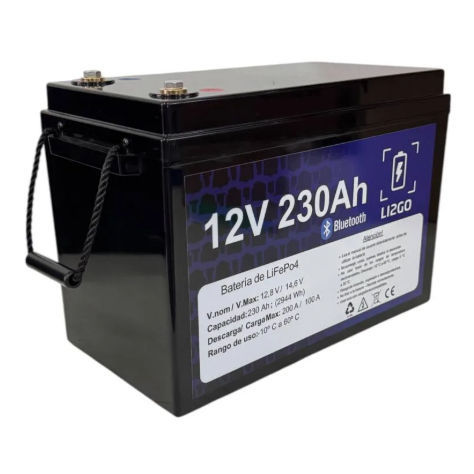

LiFePO4 battery 35706

12 Vfor electric vehiclesfor marine applications

Description LiFePO4 12.8V battery with Bluetooth connectivity, available in 230Ah, 280Ah and 314Ah variants. Charger not included.

Overview This professional LiFePO4 12.8V battery range is designed for reliable performance, safety and long service life. Manufactured with high-quality cells, each unit includes an integrated BMS and Bluetooth interface for mobile monitoring and configuration.

Benefits

• Stable LiFePO4 chemistry with low thermal risk and high safety margins.
• Integrated Bluetooth: monitor state of charge, cell voltages, temperature and cycle count from a smartphone.
• Long cycle life: over 3,000 cycles at 80% depth of discharge.
• Intelligent BMS: protection against overcharge, over-discharge, short-circuit and temperature anomalies.
• Maintenance-free, no memory effect and very low self-discharge.
• Compact and lightweight design, suitable for constrained installations.

Recommended applications

• Motorhomes and campers: power fridges, LED lighting, inverters, heaters, water pumps and appliances.
• Off-grid solar systems: battery storage for residential or mobile PV installations.
• Marine and recreational boats: resistant to vibration and suitable for marine environments.
• Light electric vehicles: golf carts, scooters, electric wheelchairs, etc.
• Mobile homes, tiny houses and field cabins.
• Backup systems (UPS) and emergency power equipment.

Full mobile control

• State of charge (SOC)
• Per-cell voltage
• Input/output current
• Internal temperature
• Cycle count

Technical data 12V 230Ah
Parameter: Value
Nominal voltage: 12.8 V
Nominal capacity: 230 Ah (2,944 Wh)
Cell type: LiFePO4 (Lithium Iron Phosphate)
Cycle life: > 3,000 cycles @ 80% DOD
Voltage range: 10.0 V – 14.6 V
Max charge current: 100 A
Max discharge current: 200 A
Internal protection (BMS): Yes, with automatic cutoff
Bluetooth communication: Yes, free app included
Weight: ≈ 17 kg
Dimensions (LxWxH): 345 x 190 x 245 mm
Operating temperature: -20 °C to +60 °C
Connectors: M8

Features / Technical specifications

• Nominal voltage: 12.8 V
• Nominal capacity: 230 Ah (2,944 Wh)
• Cell type: LiFePO4
• Cycle life: > 3,000 cycles @ 80% DOD
• Max discharge current: 200 A
• Max charge current: 100 A
• Integrated BMS: full protection with automatic cutoff
• Communication: Bluetooth with free app
• Approx. weight: 17 kg
• Dimensions: 345 x 190 x 245 mm
• Operating temperature: -20 °C to +60 °C
• Connectors: M8
