LiFePO4 battery 35717

12 Vfor UPSfor automotive applications

Description

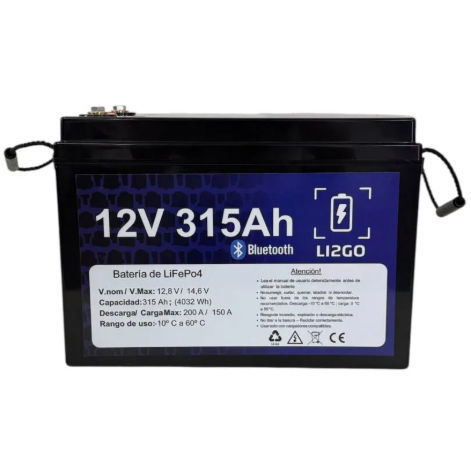

12.8 V 315 Ah LiFePO4 battery designed for caravans, campers, marine and diverse industrial/mobile applications. Compact unit with easy connections, integrated intelligent BMS and Bluetooth for mobile monitoring.

Key features

• LiFePO4 chemistry: stable and safe, reduced fire/explosion risk.
• Built-in Bluetooth for remote monitoring via free app (Android/iOS).
• Long service life: >3,000 cycles with approx. 20% degradation.
• Intelligent BMS: protection against overcharge, overdischarge, short circuit and temperature.
• Maintenance-free, negligible memory effect and very low self-discharge.
• Lightweight, compact design suitable for confined spaces.

Recommended applications

• Caravans and motorhomes: power refrigerators, LED lighting, inverters, heaters, water pumps.
• Off-grid solar systems: 12 V battery for residential or mobile PV installations.
• Boats and recreational fishing: resistant to vibration and marine environments.
• Light electric vehicles: golf carts, scooters, mobility chairs.
• Mobile homes, tiny houses and field cabins.
• Backup power (UPS) and emergency equipment.

Control and monitoring
Integrated Bluetooth module and free app allow real-time monitoring:

• State of charge (SOC)
• Cell voltage
• Charge/discharge current
• Internal temperature
• Cycle count

Technical data
Nominal voltage: 12.8 V
Nominal capacity: 315 Ah (4032 Wh)
Cell type: LiFePO4 (Lithium Iron Phosphate)
Cycle life: > 3,000 cycles @ 80% SOH
Voltage range: 10.0 V – 14.6 V
Max charge current: 150 A
Max discharge current: 150 – 200 A
Internal protection (BMS): Yes, with automatic cut-off
Bluetooth communication: Yes, free app included
Weight: ≈ 23 kg
Dimensions (mm): 345 x 190 x 245 (L x W x H)
Operating temperature: -20 °C to +60 °C
Connectors: M8
